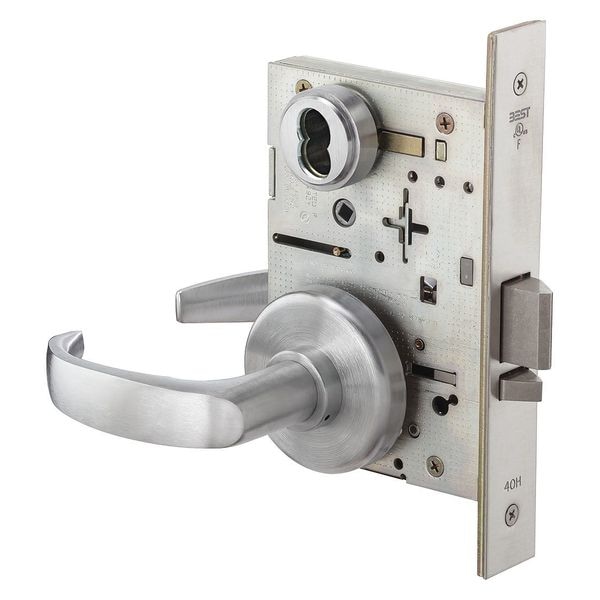

Mortise Lockset, Lever, 40H Rose, Ser. 40H, Grd. 1, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| ADA Compliant | Yes |
| Number of Keys | 0 |
| Item | Door Lockset |
| Backset | 2-3/4 in |
| Series | 40H Series |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Strike Type | ANSI |
| For Use With | Hollow Metal and Wood Doors |
| Ligature Resistant | No |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Location Type | Commercial |
| Lockset Fire Rating | 3 hr |
| Mortise/Cylindrical | Mortise |
| Includes | 2 3/4 in Dia H Rose Flat with Round Edge |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Number of Pins | 7 |
| Handle Type | Curved Return |
| Voltage | Not Applicable |
| Pins | 0 |
| Key Material | Not Applicable |
| Function | Storeroom |
| Fire Rated | 3 hr. |
| Grade | 1 |
| Case Material | Steel, Zinc |
| Finish | Satin Chrome |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Height | 4-7/8 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 5 in |
| Fire Rating | 3 hr |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Lockset Type | Mechanical |
| Lockset Function ANSI Code | F07 |
| ANSI Grade | 1 |
| Lockset Style | 40H Rose |
| Strike Plate Width | 1/8 in |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Strike Plate Thickness | 1 1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial, Industrial |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
