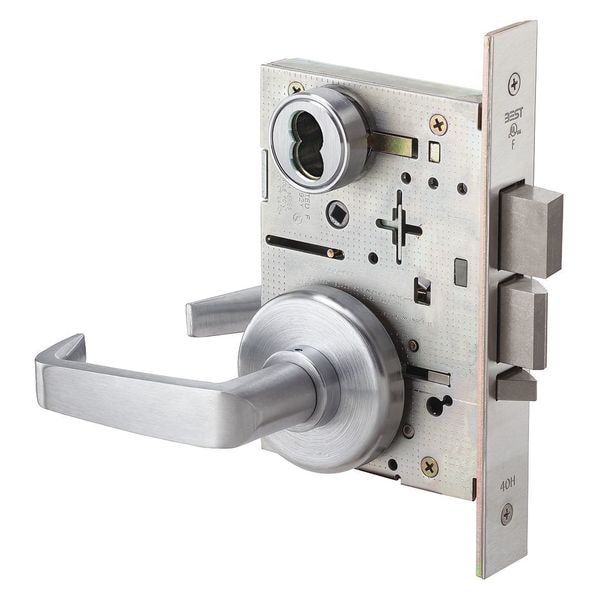

Mortise Lockset, Lever, 40H Rose, Ser. 40H, Grd. 1, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Includes | 2 3/4 in Dia H Rose Flat with Round Edge |
| Series | 40H Series |
| Location Type | Commercial |
| Number of Keys | 0 |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Backset | 2-3/4 in |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| For Use With | Hollow Metal and Wood Doors |
| Item | Door Lockset |
| Mortise/Cylindrical | Mortise |
| Strike Type | ANSI |
| Pins | 0 |
| Fire Rated | 3 hr. |
| Key Material | Not Applicable |
| Number of Pins | 7 |
| Grade | 1 |
| Case Material | Steel, Zinc |
| Handle Type | Contour/Angle Return |
| Function | Storeroom |
| Finish | Satin Chrome |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Maximum | 5 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Includes Hardware | Hardware Included |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI Grade | 1 |
| Application | Commercial, Industrial |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Style | 40H Rose |
| Strike Plate Width | 1/8 in |
| Fire Rating | 3 hr |
| Lockset Function ANSI Code | F07 |
| Strike Plate Height | 4-7/8 in |
| Strike Plate Thickness | 1 1/4 in |
| Visual Indicator Location | Not Applicable |
| Lockset Type | Mechanical |
| Door Thickness - Minimum | 1-3/4 in |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
