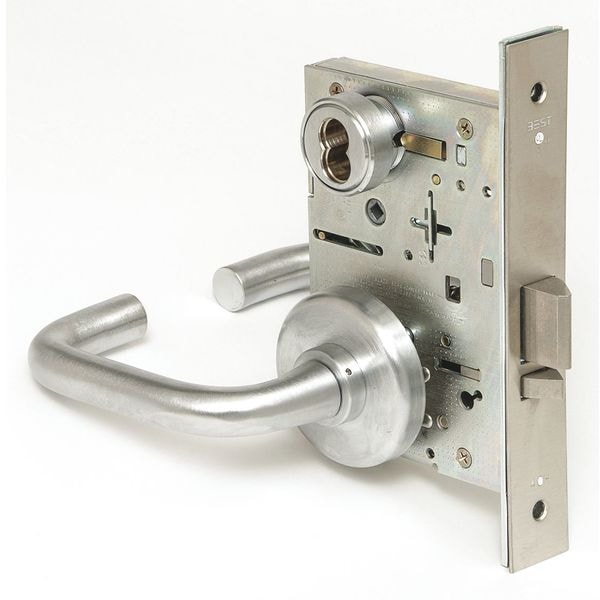

Mortise Lockset, Lever, 40H Rose, Ser. 40H, Grd. 1, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Strike Type | ANSI |
| Location Type | Commercial |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| ADA Compliant | Yes |
| Number of Keys | 0 |
| Includes | 2 3/4 in Dia H Rose Flat with Round Edge, Single Key with Latch |
| Mortise/Cylindrical | Mortise |
| Backset | 2-3/4 in |
| Series | 40H Series |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| For Use With | Hollow Metal and Wood Doors |
| Ligature Resistant | No |
| Item | Door Lockset |
| Pins | 0 |
| Function | Storeroom |
| Key Material | Not Applicable |
| Fire Rated | 3 hr. |
| Case Material | Steel, Zinc |
| Number of Pins | 7 |
| Handle Type | Solid Tube, Return |
| Grade | 1 |
| Finish | Satin Chrome |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Style | 40H Rose |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 5 in |
| Performance Grade | 1 |
| Strike Plate Thickness | 1 1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Height | 4-7/8 in |
| Lockset Type | Mechanical |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Function ANSI Code | F07 |
| ANSI Grade | 1 |
| Strike Plate Width | 1/8 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Application | Commercial, Industrial |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
