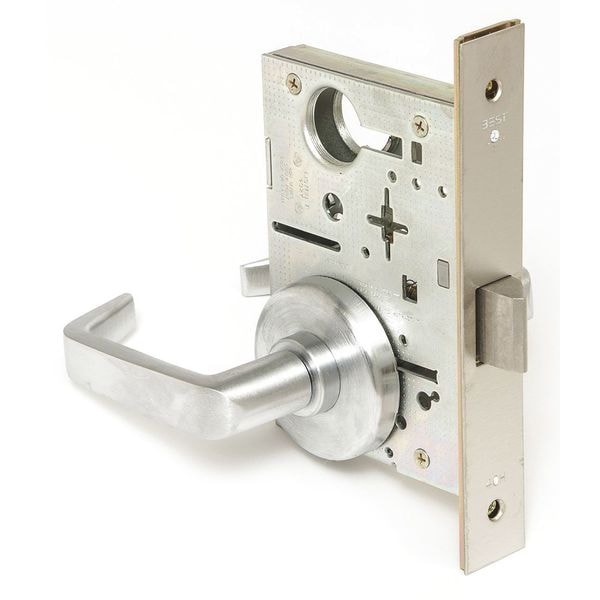

Mortise Lockset, Lever, 40H Rose, Series 40H, Grd. 1, Passage
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Key Type | Not Keyed |
| Keyway Type | None |
| Location Type | Commercial |
| Lockset Function | Passage |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Mortise |
| Required Door Thickness | 1-3/4 in |
| Series | 40H Series |
| Style | 40H Rose |
| Finish | Satin Chrome |
| Lockset Finish | Satin Chrome |
| ADA Compliant | Yes |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 0 |
| Ligature Resistant | No |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Item | Door Lockset |
| Mortise / Cylindrical | Mortise |
| Strike Type | ANSI |
| Pins | 0 |
| Function | Passage |
| Voltage | Not Applicable |
| Key Material | Not Applicable |
| Case Material | Steel, Zinc |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Handle Type | Contour/Angle Return |
| Visual Indicator Message | No Message |
| Application | Commercial, Industrial |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Type | Mechanical |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | 40H Rose |
| Hand Orientation | Non-Handed |
| Strike Plate Width | 1/8 in |
| ANSI Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Outside | Not Lockable |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Thickness | 1 1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Includes Hardware | Hardware Included |
| Lockset Function ANSI Code | F01 |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Inside | Not Lockable |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Door Thickness - Maximum | 5 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
