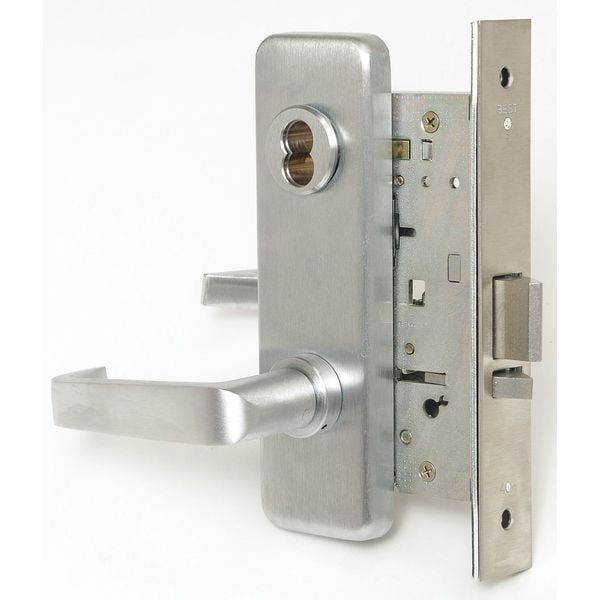

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | 15 Lever Design, Hardware |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Grade | 1 |
| Strike Type | ANSI |
| Mortise / Cylindrical | Mortise |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Mortise |
| ADA Compliant | Yes |
| Required Door Thickness | 1-3/4 in |
| Location Type | Commercial |
| Voltage | Not Applicable |
| Backset | 2 3/4 in |
| Lockset Function | Storeroom |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Number of Keys | 0 |
| Lockset Finish | Satin Chrome |
| Lockset Fire Rating | 3 hr |
| Electrical/Mechanical | Electrical |
| Ligature Resistant | No |
| Keyway Type | None |
| Case Material | Steel Zinc |
| Key Material | Not Applicable |
| Pins | 0 |
| Fire Rated | 3 hr. |
| Function | Fail Safe, Storeroom |
| Grade | 1 |
| Number of Pins | 7 |
| Handle Type | Contour/Angle Return |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 1 |
| Lockset Style | 40H Escutcheon |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Lockset Type | Mechanical |
| Fire Rating | 3 hr |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Door Thickness - Maximum | 5 in |
| Strike Plate Thickness | 1-1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Outside | Keyway |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Visual Indicator Location | Not Applicable |
| ANSI Grade | 1 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
