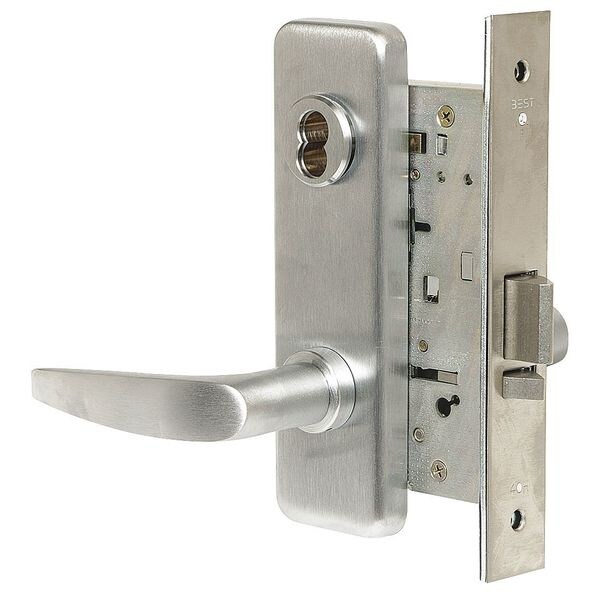

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | 16 Lever Design, Hardware |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Handle Type | Lever |
| Electrical/Mechanical | Electrical |
| ADA Compliant | Yes |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Mortise / Cylindrical | Mortise |
| Strike Type | ANSI |
| Lockset Grade | 1 |
| Voltage | Not Applicable |
| Mortise/Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Finish | Satin Chrome |
| Location Type | Commercial |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Backset | 2 3/4 in |
| Ligature Resistant | No |
| Required Door Thickness | 1-3/4 in |
| Number of Keys | 0 |
| Grade | 1 |
| Keyway Type | None |
| Function | Fail Safe, Storeroom |
| Key Material | Not Applicable |
| Pins | 0 |
| Case Material | Steel Zinc |
| Fire Rated | 3 hr. |
| Handle Type | No Return, Curved |
| Number of Pins | 7 |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 5 in |
| Hand Orientation | Non-Handed |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Fire Rating | 3 hr |
| Lockset Style | 40H Escutcheon |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Outside | Keyway |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Mechanical |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/4 in |
| Strike Plate Thickness | 1-1/4 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
