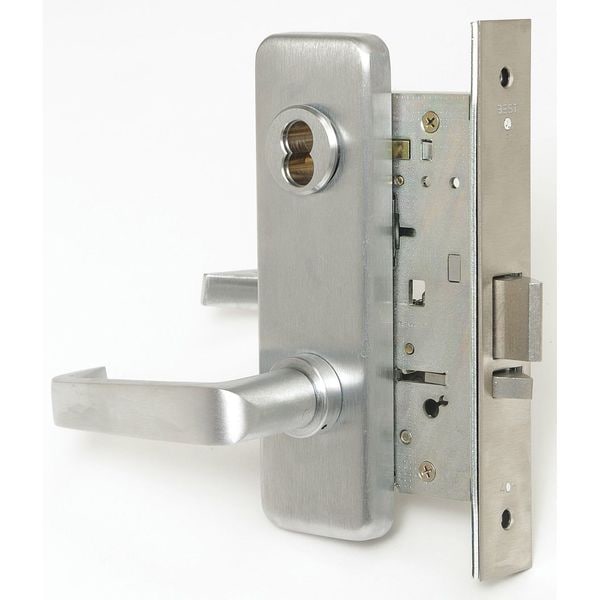

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Backset | 2 3/4 in |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Mortise / Cylindrical | Mortise |
| Location Type | Commercial |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Ligature Resistant | No |
| Mortise/Cylindrical | Mortise |
| Voltage | Not Applicable |
| Strike Type | ANSI |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Lockset Grade | 1 |
| Electrical/Mechanical | Electrical |
| Lockset Function | Storeroom |
| Number of Keys | 0 |
| Lockset Handle Type | Lever |
| Function | Fail Secure, Storeroom |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Key Material | Not Applicable |
| Keyway Type | None |
| Handle Type | Contour/Angle Return |
| Case Material | Steel Zinc |
| Number of Pins | 7 |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Hand Orientation | Non-Handed |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Thickness | 1-1/4 in |
| ANSI Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Performance Grade | 1 |
| Fire Rating | 3 hr |
| Strike Plate Height | 4-7/8 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Maximum | 5 in |
| Locking/Unlocking Access - Outside | Keyway |
| Door Thickness - Minimum | 1-3/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Escutcheon |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
