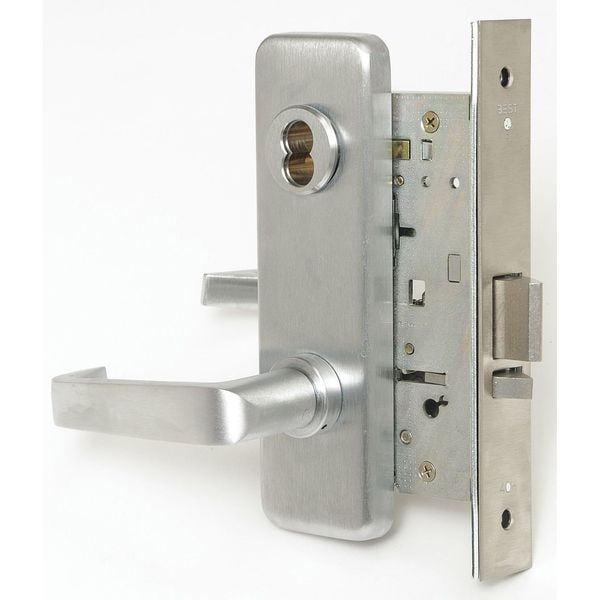

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Function | Storeroom |
| Location Type | Commercial |
| Lockset Fire Rating | 3 hr |
| Lockset Finish | Satin Chrome |
| Backset | 2 3/4 in |
| Number of Keys | 0 |
| Mortise/Cylindrical | Mortise |
| Strike Type | ANSI |
| Lockset Handle Type | Lever |
| Lockset Grade | 1 |
| Mortise / Cylindrical | Mortise |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Required Door Thickness | 1-3/4 in |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Voltage | Not Applicable |
| Electrical/Mechanical | Electrical |
| Handle Type | Contour/Angle Return |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Case Material | Stainless Steel, Zinc |
| Number of Pins | 7 |
| Keyway Type | None |
| Key Material | Not Applicable |
| Function | Fail Secure, Storeroom |
| Grade | 1 |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Door Thickness - Maximum | 5 in |
| Lockset Type | Mechanical |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Performance Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Door Thickness - Minimum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Escutcheon |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI Grade | 1 |
| Strike Plate Thickness | 1-1/4 in |
| Fire Rating | 3 hr |
| Ligature-Resistant | Not Ligature-Resistant |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
