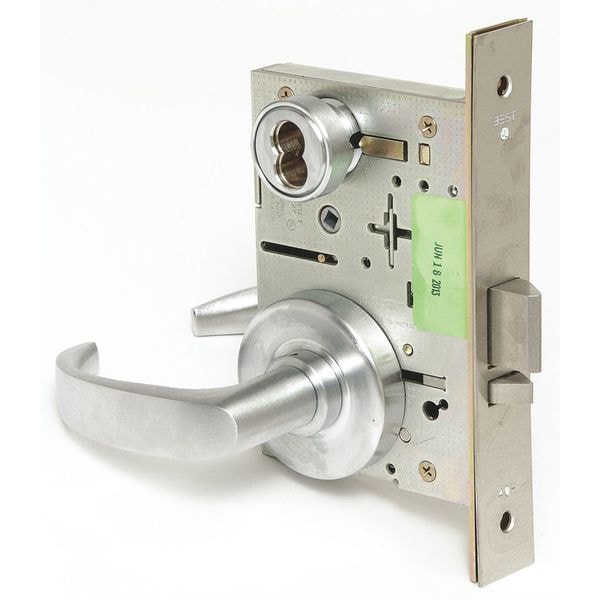

Mortise Lockset, Lever, 40H Ser., 40H Rose, Class, Mech.
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Classroom |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Series | 40H Series |
| Backset | 2-3/4 in |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Fire Rating | 3 hr |
| Mortise/Cylindrical | Mortise |
| Number of Keys | 0 |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Strike Type | ANSI |
| ADA Compliant | Yes |
| Item | Door Lockset |
| Ligature Resistant | No |
| For Use With | Hollow Metal and Wood Doors |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Includes | 2 3/4 in Dia R Rose Contoured with Round Edge |
| Location Type | Commercial |
| Pins | 0 |
| Function | Classroom |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Voltage | Not Applicable |
| Finish | Satin Chrome |
| Fire Rated | 3 hr. |
| Case Material | Steel, Zinc |
| Handle Type | Curved Return |
| Grade | 1 |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Width | 1/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Function ANSI Code | F05 |
| ANSI Grade | 1 |
| Lockset Style | 40H Rose |
| Lockset Type | Mechanical |
| Door Thickness - Minimum | 1-3/4 in |
| Strike Plate Height | 4-7/8 in |
| Visual Indicator Location | Not Applicable |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 1 |
| Strike Plate Thickness | 1 1/4 in |
| Door Thickness - Maximum | 5 in |
| Fire Rating | 3 hr |
| Application | Commercial, Industrial |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
