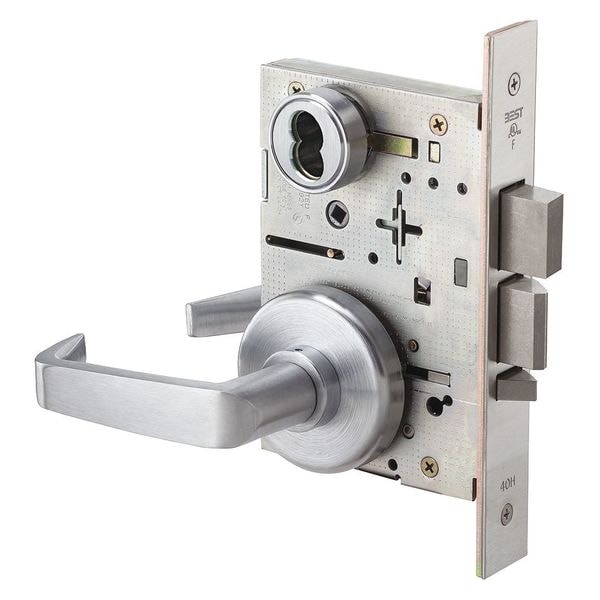

Mortise Lockset, Lever, 40H Ser., 40H Rose, Dorm, Mech.
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Dormitory |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Mortise/Cylindrical | Mortise |
| Location Type | Commercial |
| Strike Type | ANSI |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Item | Door Lockset |
| Lockset Fire Rating | 3 hr |
| Series | 40H Series |
| Backset | 2-3/4 in |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Includes | Hardware |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| For Use With | Hollow Metal and Wood Doors |
| Number of Keys | 0 |
| Handle Type | Contour/Angle Return |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Pins | 0 |
| Finish | Satin Chrome |
| Case Material | Steel, Zinc |
| Function | Dormitory |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Style | 40H Rose |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Includes Hardware | Hardware Included |
| Lockset Function ANSI Code | F12 |
| Door Thickness - Maximum | 5 in |
| Fire Rating | 3 hr |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Strike Plate Thickness | 1 1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Application | Commercial, Industrial |
| Lockset Type | Mechanical |
| Performance Grade | 1 |
| Strike Plate Width | 1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
