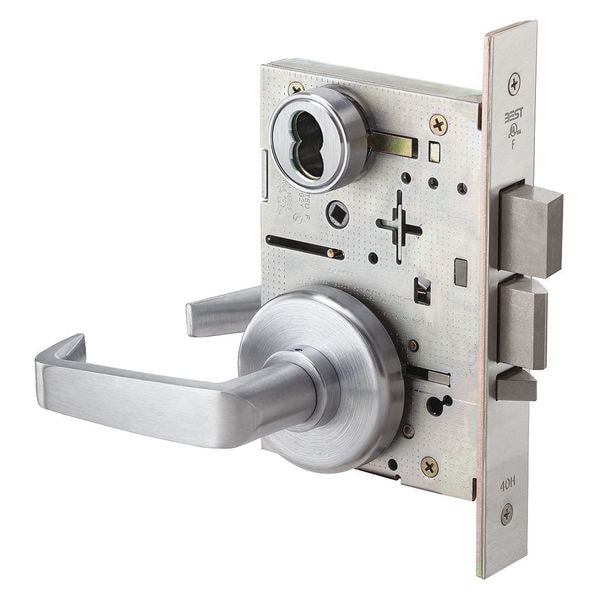

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Voltage | Not Applicable |
| Electrical/Mechanical | Electrical |
| Lockset Handle Type | Lever |
| Required Door Thickness | 1-3/4 in |
| Mortise/Cylindrical | Mortise |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial |
| Ligature Resistant | No |
| Lockset Function | Storeroom |
| Mortise / Cylindrical | Mortise |
| Lockset Finish | Satin Chrome |
| Number of Keys | 0 |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Grade | 1 |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| ADA Compliant | Yes |
| Strike Type | ANSI |
| Backset | 2 3/4 in |
| Case Material | Steel Zinc |
| Grade | 1 |
| Number of Pins | 7 |
| Function | Storeroom |
| Handle Type | Contour/Angle Return |
| Key Material | Not Applicable |
| Keyway Type | None |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI Grade | 1 |
| Performance Grade | 1 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Visual Indicator Location | Not Applicable |
| Strike Plate Thickness | 1-1/4 in |
| Strike Plate Height | 4-7/8 in |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Lockset Type | Mechanical |
| Lockset Style | 40H Rose |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
