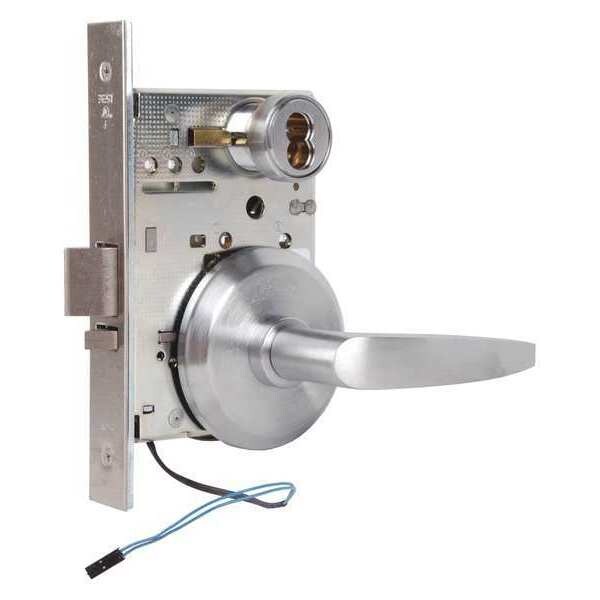

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Location Type | Commercial |
| Key Type | Not Keyed |
| Mortise / Cylindrical | Mortise |
| Electrical/Mechanical | Electrical |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| ADA Compliant | Yes |
| Number of Keys | 0 |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Fire Rating | 3 hr |
| Lockset Function | Storeroom |
| Required Door Thickness | 1-3/4 in |
| Voltage | Not Applicable |
| Lockset Handle Type | Lever |
| Backset | 2 3/4 in |
| Strike Type | Lip |
| Lockset Finish | Satin Chrome |
| Mortise/Cylindrical | Mortise |
| Ligature Resistant | No |
| Lockset Grade | 1 |
| Case Material | Steel Zinc |
| Pins | 0 |
| Number of Pins | 7 |
| Keyway Type | None |
| Function | Storeroom |
| Grade | 1 |
| Key Material | Not Applicable |
| Handle Type | No Return, Curved |
| Fire Rated | 3 hr. |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Door Thickness - Maximum | 5 in |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Hand Orientation | Non-Handed |
| Lockset Style | 40H Rose |
| ANSI Grade | 1 |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Outside | Keyway |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Fire Rating | 3 hr |
| Strike Plate Thickness | 1-1/4 in |
| Performance Grade | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Height | 4-7/8 in |
| Strike Plate Lip Length | 1-1/4 in |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
