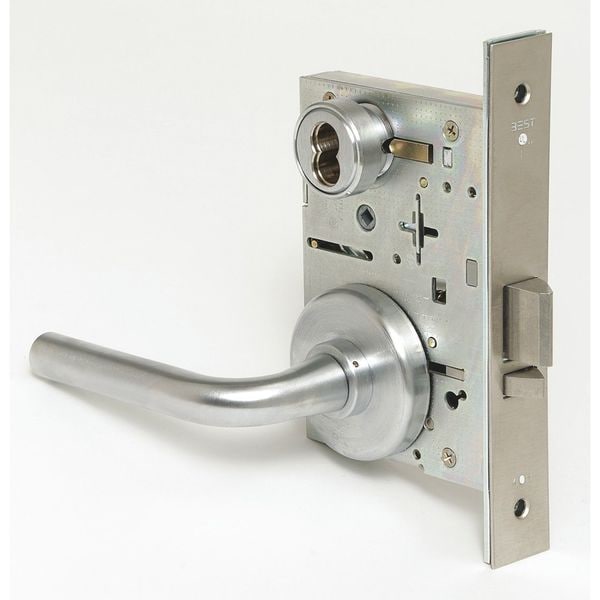

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Stainless |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Mortise / Cylindrical | Mortise |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial |
| Lockset Finish | Satin Stainless Steel |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Number of Keys | 0 |
| Strike Type | ANSI |
| Lockset Handle Type | Lever |
| ADA Compliant | Yes |
| Backset | 2 3/4 in |
| Ligature Resistant | No |
| Mortise/Cylindrical | Mortise |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Required Door Thickness | 1-3/4 in |
| Lockset Grade | 1 |
| Voltage | Not Applicable |
| Lockset Function | Storeroom |
| Key Type | Not Keyed |
| Electrical/Mechanical | Electrical |
| Keyway Type | None |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Number of Pins | 7 |
| Handle Type | No Return, Solid Tube |
| Case Material | Steel Zinc |
| Grade | 1 |
| Function | Storeroom |
| Key Material | Not Applicable |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| ANSI Grade | 1 |
| Locking/Unlocking Access - Outside | Keyway |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 5 in |
| Hand Orientation | Non-Handed |
| Lockset Style | 40H Rose |
| Lockset Type | Mechanical |
| Visual Indicator Location | Not Applicable |
| Strike Plate Height | 4-7/8 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Thickness | 1-1/4 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
