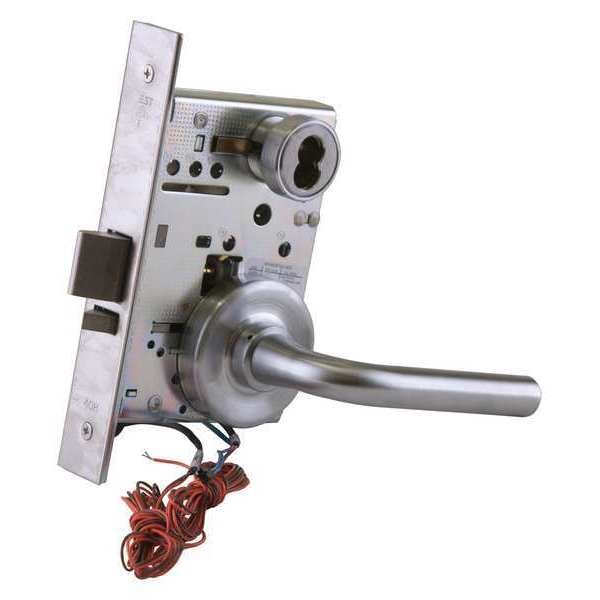

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Number of Keys | 0 |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Strike Type | ANSI |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Mortise/Cylindrical | Mortise |
| Electrical/Mechanical | Electrical |
| Required Door Thickness | 1-3/4 in |
| Ligature Resistant | No |
| Voltage | Not Applicable |
| Lockset Finish | Satin Chrome |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial |
| Mortise / Cylindrical | Mortise |
| Backset | 2 3/4 in |
| Lockset Function | Storeroom |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| ADA Compliant | Yes |
| Case Material | Steel Zinc |
| Function | Storeroom |
| Keyway Type | None |
| Handle Type | No Return, Solid Tube |
| Number of Pins | 7 |
| Pins | 0 |
| Fire Rated | 3 hr. |
| Grade | 1 |
| Key Material | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 5 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Hardware | Hardware Included |
| Lockset Type | Mechanical |
| Fire Rating | 3 hr |
| Strike Plate Thickness | 1-1/4 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Style | 40H Rose |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
