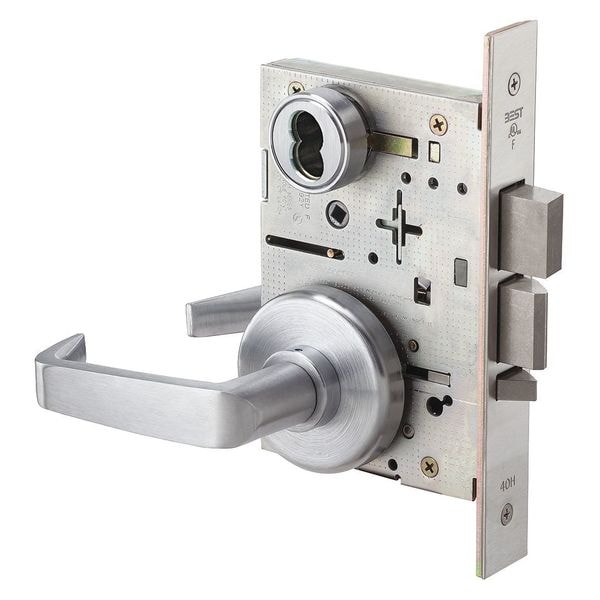

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Number of Keys | 0 |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| ADA Compliant | Yes |
| Mortise/Cylindrical | Mortise |
| Backset | 2 3/4 in |
| Required Door Thickness | 1-3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Lockset Finish | Satin Chrome |
| Strike Type | ANSI |
| Voltage | Not Applicable |
| Mortise / Cylindrical | Mortise |
| Electrical/Mechanical | Electrical |
| Lockset Function | Storeroom |
| Lockset Grade | 1 |
| Lockset Fire Rating | 3 hr |
| Lockset Handle Type | Lever |
| Location Type | Commercial |
| Ligature Resistant | No |
| Case Material | Steel Zinc |
| Key Material | Not Applicable |
| Pins | 0 |
| Function | Storeroom |
| Keyway Type | None |
| Handle Type | Contour/Angle Return |
| Fire Rated | 3 hr. |
| Grade | 1 |
| Number of Pins | 7 |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Fire Rating | 3 hr |
| Visual Indicator Location | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Strike Plate Thickness | 1-1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Maximum | 5 in |
| Locking/Unlocking Access - Outside | Keyway |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Height | 4-7/8 in |
| Lockset Style | 40H Rose |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
