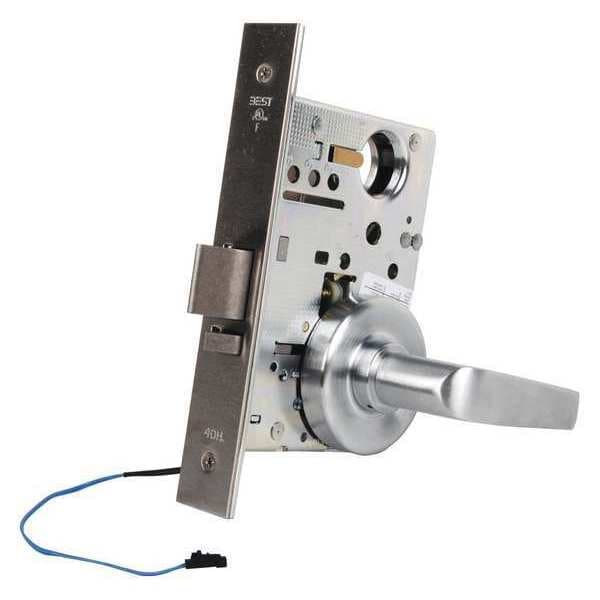

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Strike Type | ANSI |
| Voltage | Not Applicable |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Lockset Finish | Satin Chrome |
| Electrical/Mechanical | Electrical |
| Backset | 2 3/4 in |
| Mortise/Cylindrical | Mortise |
| Mortise / Cylindrical | Mortise |
| Number of Keys | 0 |
| Lockset Function | Storeroom |
| Lockset Handle Type | Lever |
| Ligature Resistant | No |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Required Door Thickness | 1-3/4 in |
| Lockset Grade | 1 |
| Location Type | Commercial |
| ADA Compliant | Yes |
| Function | Storeroom |
| Key Material | Not Applicable |
| Handle Type | Contour/Angle Return |
| Fire Rated | 3 hr. |
| Number of Pins | 7 |
| Keyway Type | None |
| Grade | 1 |
| Pins | 0 |
| Case Material | Steel Zinc |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Lockset Type | Mechanical |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Visual Indicator Location | Not Applicable |
| Strike Plate Thickness | 1-1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 5 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Fire Rating | 3 hr |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Includes Hardware | Hardware Included |
| Hand Orientation | Non-Handed |
| Lockset Style | 40H Rose |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Performance Grade | 1 |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
