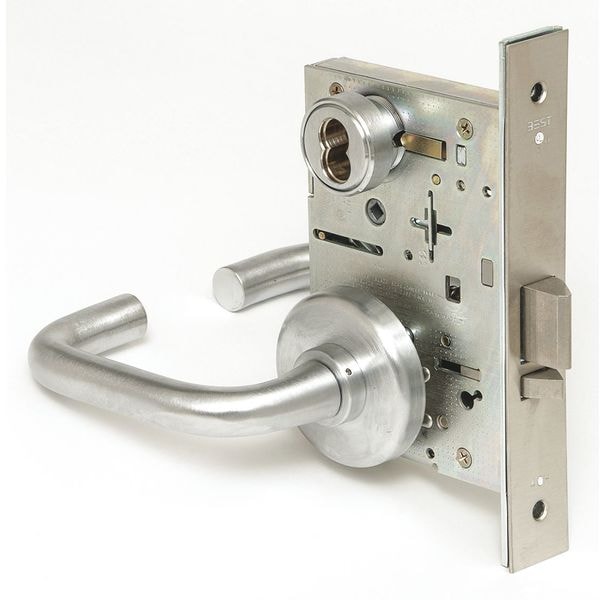

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Bronze |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Handle Type | Lever |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Ligature Resistant | No |
| Strike Type | ANSI |
| Voltage | Not Applicable |
| Number of Keys | 0 |
| Backset | 2 3/4 in |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| ADA Compliant | Yes |
| Lockset Grade | 1 |
| Mortise/Cylindrical | Mortise |
| Location Type | Commercial |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Bronze |
| Lockset Fire Rating | 3 hr |
| Electrical/Mechanical | Electrical |
| Lockset Function | Storeroom |
| Mortise / Cylindrical | Mortise |
| Grade | 1 |
| Case Material | Steel Zinc |
| Keyway Type | None |
| Function | Storeroom |
| Number of Pins | 7 |
| Pins | 0 |
| Key Material | Not Applicable |
| Fire Rated | 3 hr. |
| Handle Type | Solid Tube, Return |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Thickness | 1-1/4 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Fire Rating | 3 hr |
| Lockset Type | Mechanical |
| Lockset Style | 40H Rose |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| Visual Indicator Location | Not Applicable |
| Performance Grade | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Door Thickness - Maximum | 5 in |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
