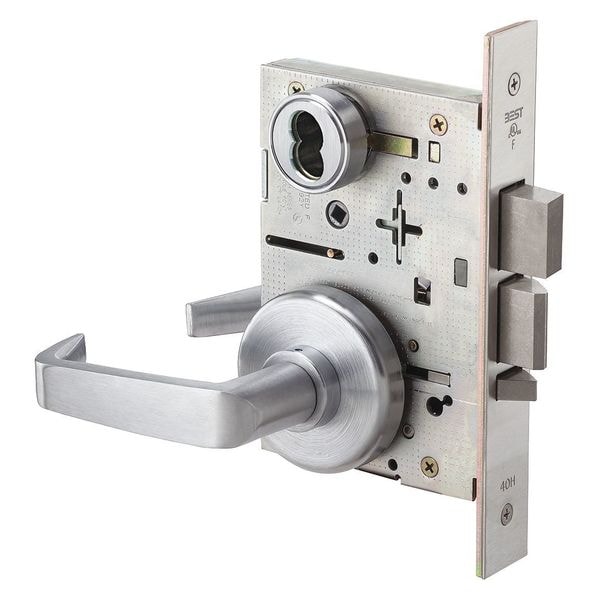

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| ADA Compliant | Yes |
| Lockset Finish | Satin Chrome |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Electrical/Mechanical | Electrical |
| Backset | 2 3/4 in |
| Mortise / Cylindrical | Mortise |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Mortise |
| Strike Type | ANSI |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Voltage | Not Applicable |
| Lockset Function | Storeroom |
| Location Type | Commercial |
| Required Door Thickness | 1-3/4 in |
| Number of Keys | 0 |
| Lockset Grade | 1 |
| Lockset Fire Rating | 3 hr |
| Ligature Resistant | No |
| Pins | 0 |
| Function | Storeroom |
| Number of Pins | 7 |
| Grade | 1 |
| Handle Type | Contour/Angle Return |
| Case Material | Steel Zinc |
| Fire Rated | 3 hr. |
| Keyway Type | None |
| Key Material | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| Lockset Type | Mechanical |
| Latch Bolt/Dead Bolt | Dead Latch |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Fire Rating | 3 hr |
| Visual Indicator Location | Not Applicable |
| Locking/Unlocking Access - Outside | Keyway |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Height | 4-7/8 in |
| Strike Plate Thickness | 1-1/4 in |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Lockset Style | 40H Rose |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
