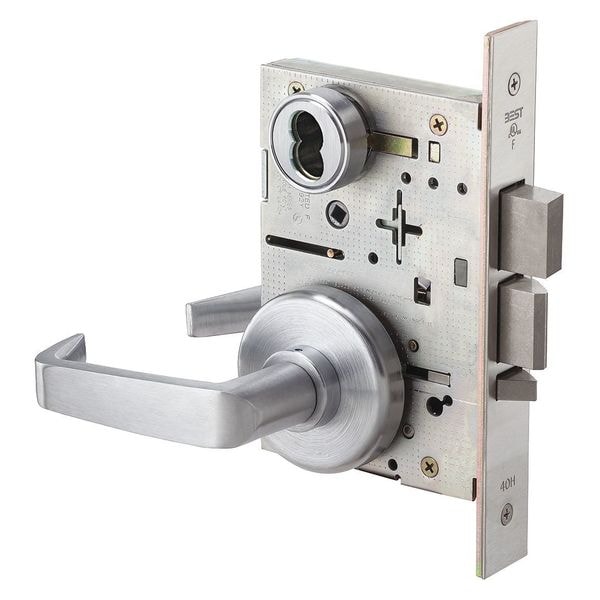

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | 40H Rose |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Electrical/Mechanical | Electrical |
| Lockset Handle Type | Lever |
| Backset | 2 3/4 in |
| Mortise/Cylindrical | Mortise |
| Location Type | Commercial |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Finish | Satin Chrome |
| Lockset Fire Rating | 3 hr |
| Lockset Function | Institutional |
| Voltage | Not Applicable |
| Required Door Thickness | 1-3/4 in |
| ADA Compliant | Yes |
| Strike Type | ANSI |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Number of Keys | 0 |
| Lockset Grade | 1 |
| Ligature Resistant | No |
| Mortise / Cylindrical | Mortise |
| Function | Storeroom |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Number of Pins | 7 |
| Grade | 1 |
| Keyway Type | None |
| Handle Type | Contour/Angle Return |
| Key Material | Not Applicable |
| Case Material | Steel Zinc |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Thickness | 1-1/4 in |
| Visual Indicator Location | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Inside | Keyway |
| Includes Hardware | Hardware Included |
| Lockset Type | Mechanical |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 5 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | 40H Rose |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Performance Grade | 1 |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Strike Plate Height | 4-7/8 in |
| Fire Rating | 3 hr |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Function ANSI Code | F30 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
