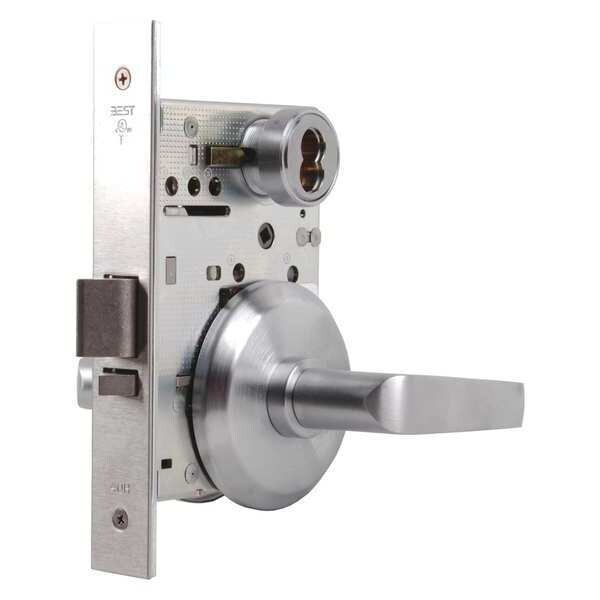

Mortise Lockset, Lever, 40H Series, 40H Rose, Mech.
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Classroom |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Number of Keys | 0 |
| Strike Type | Curved Lip |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Location Type | Commercial |
| Series | 40H Series |
| Backset | 2-3/4 in |
| For Use With | Hollow Metal and Wood Doors |
| Includes | 3 1/2 in Dia S Rose Flat with Beveled Edge |
| Mortise/Cylindrical | Mortise |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Key Material | Not Applicable |
| Finish | Satin Chrome |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Number of Pins | 7 |
| Handle Type | Contour/Angle Return |
| Function | Universal |
| Grade | 1 |
| Case Material | Steel, Zinc |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Strike Plate Lip Length | 1-1/4 in |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI Grade | 1 |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Strike Plate Height | 4-7/8 in |
| Lockset Style | 40H Rose |
| Lockset Type | Mechanical |
| Strike Plate Width | 1/8 in |
| Strike Plate Thickness | 1 1/4 in |
| Application | Commercial, Industrial |
| Door Thickness - Maximum | 5 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
