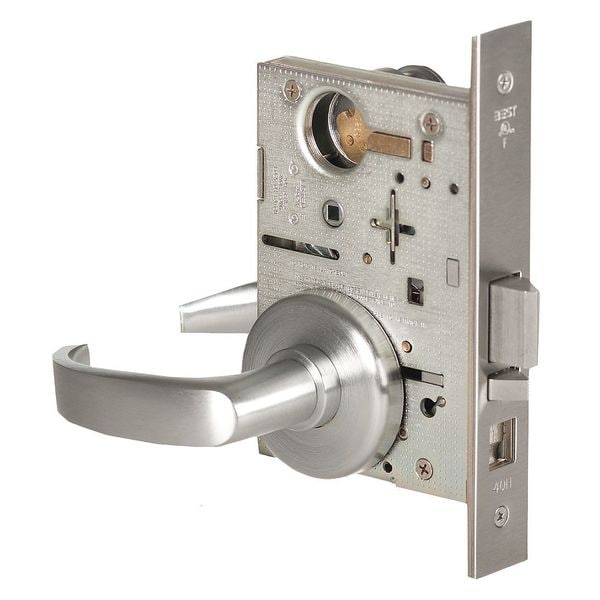

Mortise Lockset, Lever, 45H, Store, Mech.
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | 45H Rose Trim |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Key Type | Keyed Different |
| Key Material | Nickel Silver |
| Mortise/Cylindrical | Mortise |
| Lockset Fire Rating | Not Rated |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Includes | Component Kit, Lever, Trim |
| Features | Curved Return Lever Style, Right Handed |
| ADA Compliant | Yes |
| Series | 45H |
| Number of Keys | 2 |
| Strike Dim. | 4-7/8 in x 1-1/8 in x 3/32 in |
| Ligature Resistant | No |
| Backset | 2-3/4 in |
| Item | Door Lockset |
| Voltage | Not Applicable |
| Location Type | Commercial, Institutional, Residential |
| Pins | 7 |
| Case Material | Steel |
| Fire Rated | Yes |
| Handle Type | Lever |
| Function | Storeroom |
| Grade | 1 |
| Finish | Satin Chrome |
| Number of Pins | 7 |
| Keying | Keyed Different |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Performance Grade | 1 |
| Lockset Function ANSI Code | F07 |
| Strike Plate Thickness | 1 1/8 in |
| Strike Plate Width | 1/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 5 in |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial, Industrial |
| Lockset Style | 45H Rose Trim |
| Fire Rating | Not Rated |
| ANSI Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Lockset Type | Mechanical |
| Hand Orientation | Right-Handed |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
