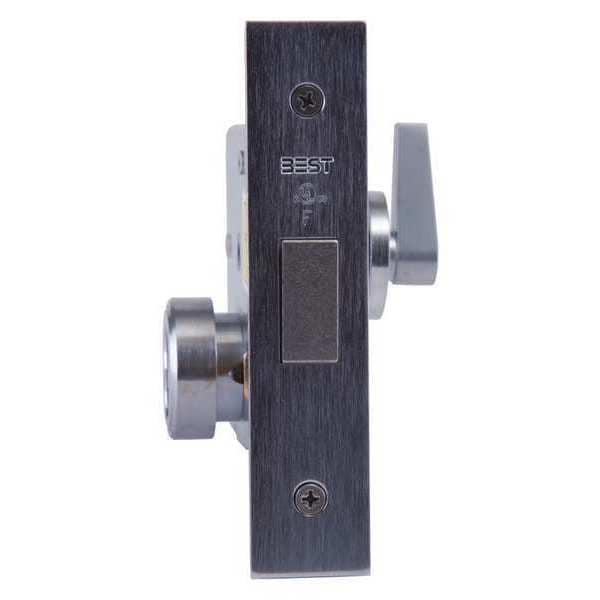

Mortise Lockset, Series 48H, Grd. 1,
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Classroom |
| Lockset Grade | Grade 1 |
| Style | 48H Deadbolt |
| Required Door Thickness | 1-3/4" |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Keyed Different |
| Number of Keys | 0 |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial, Institutional, Industrial, Residential |
| Ligature Resistant | No |
| Item | Door Lockset |
| Mortise/Cylindrical | Mortise |
| Backset | 2-3/4 in |
| Series | 48H |
| ADA Compliant | No |
| Standards | BHMA |
| Case Material | Steel |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Strike Type | ANSI Flat Lip |
| Features | 1" Throw Bolt,Brass, Right Hand |
| Voltage | Not Applicable |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Type | Mechanical |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Application | Commercial, Industrial |
| Ligature-Resistant | Not Ligature-Resistant |
| Hand Orientation | Right-Handed |
| Door Thickness - Maximum | 3 in |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI Grade | 1 |
| Lockset Function ANSI Code | F05 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/4 in |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
