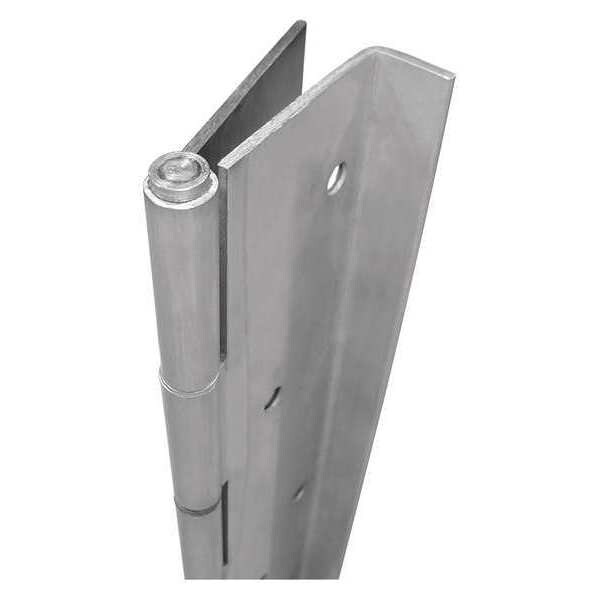

Piano Hinge, Stainless Steel, Full Mortise Mounting, 2 3/16 in Leaf W x 83 1/8 in Leaf H, Satin
| Door Leaf Height | 83-1/8 in |
|---|---|
| Door Leaf Thickness | 0.075 in |
| Door Leaf Width | 2-3/16 in |
| Finish | Satin |
| Holes per Leaf | 4 |
| Load Capacity | 600 lb |
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in to 3 in |
| Features | Standard Duty with Half Wrap Edge Guard |
| Holes | With |
| Frame Leaf Thickness | 0.19 in |
| Overall Width | 4-3/8 in |
| Ligature Resistant | No |
| Frame Leaf Height | 83-1/8 in |
| Pin Material | Stainless Steel |
| Hardware | Yes |
| Standards | ANSI/BHMA |
| Overall Knuckle Height | 7/16 in |
| Item | Piano Hinge |
| Pin Type | Removable |
| Frame Leaf Width | 2-3/16 in |
| Hinge Number | #1 Heavy Duty |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Door Thickness - Maximum | 3 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Removable Pin | Yes |
| Number of Holes per Leaf | 4 |
| Mounting Style | Full Mortise |
| Pin Diameter | 5/16 in |
| Door Thickness - Minimum | 1-3/8 in |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
