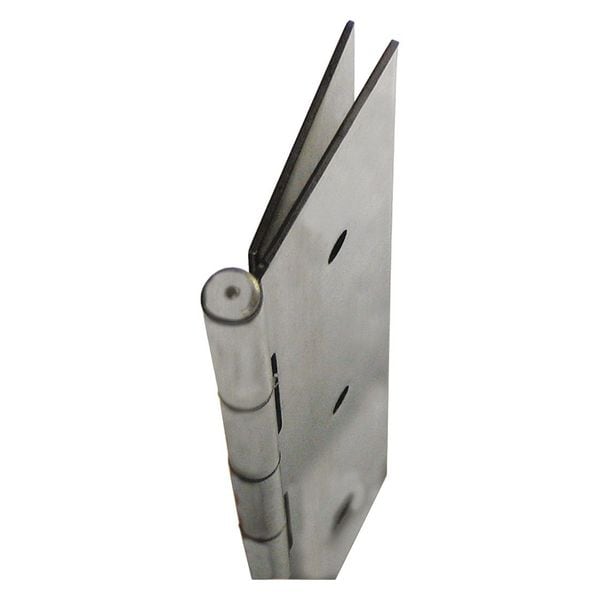

Piano Hinge, Steel, Full Mortise Mounting, 2 3/16 in Leaf W x 83 1/8 in Leaf H, Prime Coat
| Item | Piano Hinge |
|---|---|
| Material | Steel |
| Mounting | Full Mortise |
| Load Capacity | 600 lb |
| Range of Motion | 180 deg |
| Ligature Resistant | No |
| Finish | Prime Coat |
| Holes | With |
| Door Leaf Width | 2-3/16 in |
| Door Leaf Height | 83-1/8 in |
| Door Leaf Thickness | 0.075 in |
| Holes per Leaf | 21 |
| Frame Leaf Width | 2-3/16 in |
| Frame Leaf Height | 83-1/8 in |
| Frame Leaf Thickness | 0.075 in |
| Hole Spacing | 3 in |
| Overall Knuckle Height | 2 in |
| Required Door Thickness | 1-3/4 in |
| ADA Compliant | Yes |
| Length | 7 ft |
| Standards | ANSI A81011B |
| Features | Distribute Weight Evenly on the Door and Door Frame, Full-Length Channel Cap |
| Hardware | Included |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Pin Material | Steel |
| Overall Width | 4-3/8 in |
| Pin Type | Nonremovable |
| Color | Gray |
| Width | 2-3/16 in |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Primed For Painting |
| Mounting Style | Full Mortise |
| Number of Holes per Leaf | 21 |
| Pin Diameter | 1/4 in |
| Removable Pin | No |
| Door Thickness - Maximum | 1 3/4 in |
| Hinge Length | 7 ft |
| Range of Motion - Maximum | 180 deg |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
