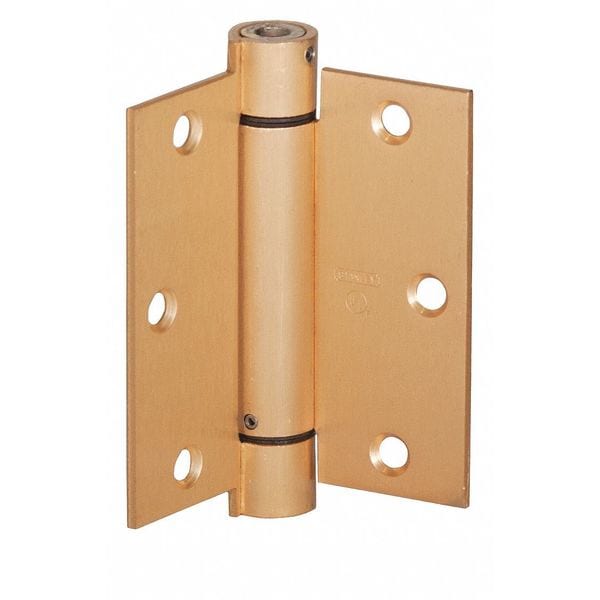

Spring Hinge, Steel, Door Leaf 1-3/8"W
| Item | Spring Hinge |
|---|---|
| Material | Brass |
| Hardware | Included |
| Pin Type | Nonremovable |
| Ligature Resistant | No |
| Corners | Square |
| Load Capacity | 32 lb |
| Mounting | Full Mortise |
| Bearing Type | Ball |
| Frame Leaf Width | 1-3/8 in |
| Finish | Satin Brass |
| Holes per Leaf | 3 |
| Range of Motion | 180 deg |
| Pin Material | Stainless Steel |
| Door Leaf Width | 1-3/8 in |
| Holes | With |
| Door Leaf Thickness | 0.099 in |
| Frame Leaf Height | 3-1/2 in |
| Frame Leaf Thickness | 0.099 in |
| Overall Knuckle Height | 3-1/2 in |
| Orientation | Non Handed |
| Required Door Thickness | 1-3/8" |
| Door Leaf Height | 3-1/2 in |
| Standards | UL Listed |
| Features | Adjustable |
| Door Thickness - Maximum | 1-3/8 in |
| Range of Motion - Maximum | 180 deg |
| Removable Pin | No |
| Hand Orientation | Right-Handed |
| Includes Hardware | Hardware Included |
| Fire Rating | 3 hr |
| Number of Holes per Leaf | 3 |
| Mounting Style | Full Mortise |
| Corner Type | Square |
| ANSI/BHMA Finish | Satin Brass, Clear Coated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
