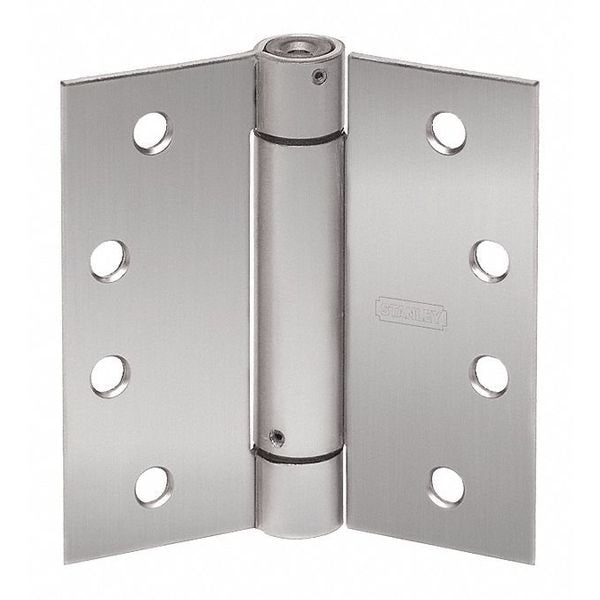

Spring Hinge, Steel, Door Leaf 1-5/8"W
| Holes per Leaf | 4 |
|---|---|
| Pin Material | Stainless Steel |
| Corners | Square |
| Material | Steel |
| Frame Leaf Width | 1-5/8 in |
| Pin Type | Nonremovable |
| Hardware | Included |
| Finish | Satin Chrome |
| Mounting | Full Mortise |
| Bearing Type | Ball |
| Load Capacity | 50 lb |
| Door Leaf Width | 1-5/8 in |
| Range of Motion | 180 deg |
| Item | Spring Hinge |
| Ligature Resistant | No |
| Frame Leaf Thickness | 0.134 in |
| Door Leaf Thickness | 0.134 in |
| Required Door Thickness | 1-3/4" |
| Holes | With |
| Overall Knuckle Height | 4-1/2 in |
| Orientation | Non Handed |
| Door Leaf Height | 4-1/2 in |
| Frame Leaf Height | 4-1/2 in |
| Mounting Style | Full Mortise |
| Fire Rating | 3 hr |
| Hand Orientation | Right-Handed |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Removable Pin | No |
| Features | Adjustable |
| Includes Hardware | Hardware Included |
| Standards | UL Listed |
| Door Thickness - Maximum | 1-3/4 in |
| Number of Holes per Leaf | 4 |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
