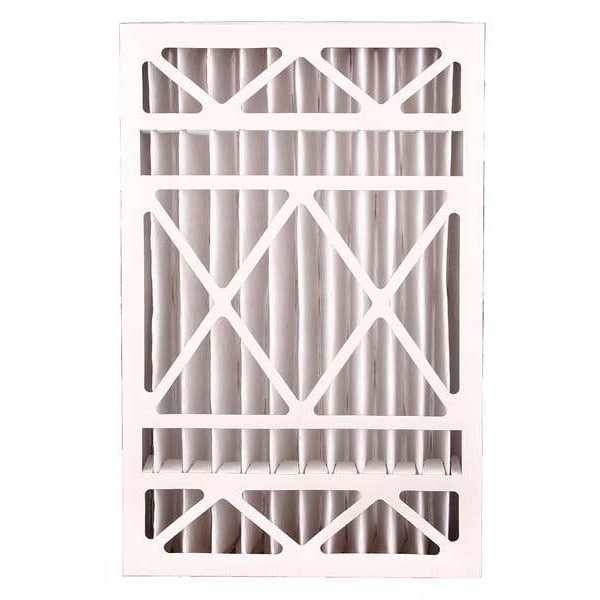

16 in x 25 in x 5 in Synthetic Furnace Air Cleaner Filter
| Nominal Filter Size | 16x25x5 |
|---|---|
| Nominal Height | 16 in |
| Nominal Width | 25 in |
| Nominal Depth | 5 in |
| For Use With | Honeywell Air Cleaner Mfr. No. F100B1016, F100F1012, F100F1038, F100F2002, F100F2010, F200E1029 |
| Item | Furnace Air Cleaner Filter |
| Frame Included | Yes |
| Max. Temp. | 140 Degrees F |
| Actual Filter Size | 15-3/4 in x 24-3/4 in x 4-3/8 in |
| Actual Width | 24-3/4 in |
| Standards | ASHRAE 52.2 |
| Air Filter Item | Furnace Air Cleaner Filter |
| Frame or Header Material | Beverage Board |
| OEM Replacement For (Filters) | Honeywell F100/150 FC100A1026/1029, Honeywell F200 FC200E1029, Honeywell 203719, Honeywell CF100A1009, Honeywell CF100A1041, Honeywell CF200A1008, Honeywell F35/35R FC35A1001, Honeywell FC100A1029, Honeywell FC200E1029, Honeywell POPUP1625 |
| Media Color | White |
| Media Material | Synthetic |
| Style - Air Filters | Panel |
| Max. Velocity | 400 fpm |
| Gasket Material | None |
| For Use With (Systems) | HCF16-10, Honeywell F100B1016, Honeywell F100F1012, Honeywell F100F2002, Honeywell F150E1026, Honeywell F200E1029, Honeywell F25F1000, Honeywell F35F1008, Lennox HCC16-28, Lennox HCF16-16, Lennox HCXF16-16 |
| Media Area | 19.1 sq ft |
| Initial Resistance @ 300 fpm | 0.17 in wc |
| Common Applications | Furnace Air Cleaner |
| Fits OEM Housing | Honeywell F25F1000, F35F1008, F100B1016, F100F1012, F100F2002, F150E1026, F200E1029, Lennox HCC16-28, HCXF16-16, HCF16-16, HCF16-10 |
| Actual Height | 15-3/4 in |
| Air Flow @ 300 fpm | 1,024 cfm |
| Performance Rating | MERV 13 |
| Removes Particles Down To | 0.3 to 1.0 microns |
| Pleats per Linear Foot | 12 |
| Actual Depth | 4-3/8 in |
| Gasket Location | None |
| Final Recommended Resistance | 1.0 in in wc |
| Air Filter Capacity | High Capacity |
| Filter Efficiency - Air Filters | 75 % |
| Filter Frame Color | White |
| Filters Out | Dust, Bacteria, Smoke |
| Filter Efficiency | 75% |
| Frame Material | Cardboard |
| Filter Layer Type | Electrostatic |
| Number of Filters | 2 |
| Filter Type | Pleated |
| Filters Down To | 0.3 micron |
| Compatible Manufacturer Model Number | F100B1016, F100F1012, F100F2002, F150E1026, F200E1029, F25F1000, F35F1008, HCC16-28, HCF16-10, HCF16-16, HCXF16-16 |
| Includes Frame | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 2 |
