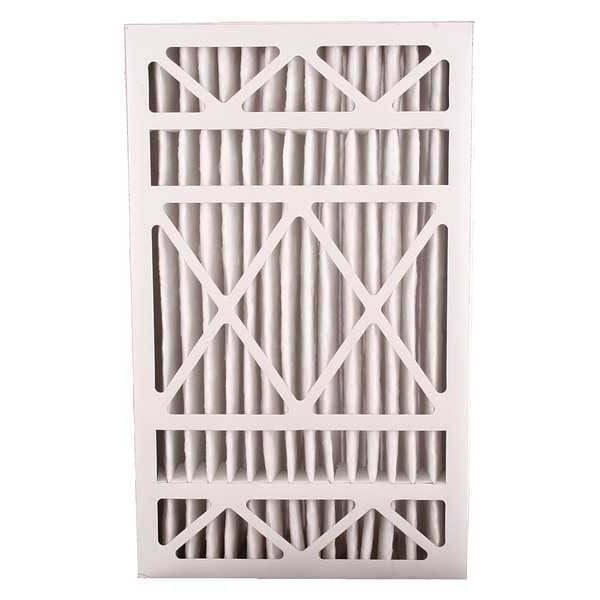

16 in x 25 in x 5 in Synthetic Furnace Air Cleaner Filter
| Nominal Filter Size | 16x25x5 |
|---|---|
| Nominal Height | 16 in |
| Nominal Width | 25 in |
| Nominal Depth | 5 in |
| For Use With | Trion Air Bear Mfr. No. 455602-125, Supreme 1400, 1400, Skuttle Mfr. No. DB0-0025-016, GeneralAire Mfr. No. MAC1400, Source1 Mfr. No. S1-MAC10162505, Ultravation Mfr. No. 90-006 |
| Item | Furnace Air Cleaner Filter |
| Frame Included | Yes |
| Max. Velocity | 450 fpm |
| Actual Width | 24-1/8 in |
| Pleats per Linear Foot | 12 |
| Air Filter Item | Furnace Air Cleaner Filter |
| Max. Temp. | 140 Degrees F |
| Removes Particles Down To | 0.3 to 1.0 microns |
| Media Material | Synthetic |
| OEM Replacement For (Filters) | 255649-105, GeneralAire, Lennox, MAC 259112-105, Skuttle, Source 1/York, Trion Air Bear Cub |
| Standards | ASHRAE 52.2 |
| Media Area | 21.2 sq ft |
| Frame or Header Material | Beverage Board |
| Air Filter Capacity | High Capacity |
| For Use With (Systems) | GeneralAire Model: MAC1400, Skuttle Model: DB0-0025-016, Supreme 1400, Trion Air Bear 455602-125, Ultravation 90-006, York/Source1 S1-MAC10162505 |
| Common Applications | Furnace Air Cleaner |
| Final Recommended Resistance | 1.0 in in wc |
| Fits OEM Housing | Trion Air Bear 455602-125, Supreme 1400, Skuttle Model: DB0-0025-016, GeneralAire Model: MAC1400, York/Source1 S1-MAC10162505, Ultravation 90-006 |
| Performance Rating | MERV 11 |
| Gasket Location | None |
| Filters Out | Auto Emission Particulates, Dust |
| Filter Efficiency - Air Filters | 65 % |
| Style - Air Filters | Panel |
| Actual Filter Size | 15-5/8 in x 24-1/8 in x 4-7/8 in |
| Gasket Material | None |
| Air Flow @ 300 fpm | 1,024 cfm |
| Actual Depth | 4-7/8 in |
| Actual Height | 15-5/8 in |
| Media Color | White |
| Filter Frame Color | White |
| Initial Resistance @ 300 fpm | 0.11 in wc |
| Filter Efficiency | 65% |
| Filter Layer Type | Electrostatic |
| Frame Material | Cardboard |
| Compatible Manufacturer Model Number | 455602-125, 90-006, DB0-0025-016, MAC1400, S1-MAC10162505, Supreme 1400 |
| Filter Type | Pleated |
| Number of Filters | 2 |
| Includes Frame | Yes |
| Filters Down To | 0.3 micron |
| Country of Origin (subject to change) | United States |
| Package Quantity | 2 |
