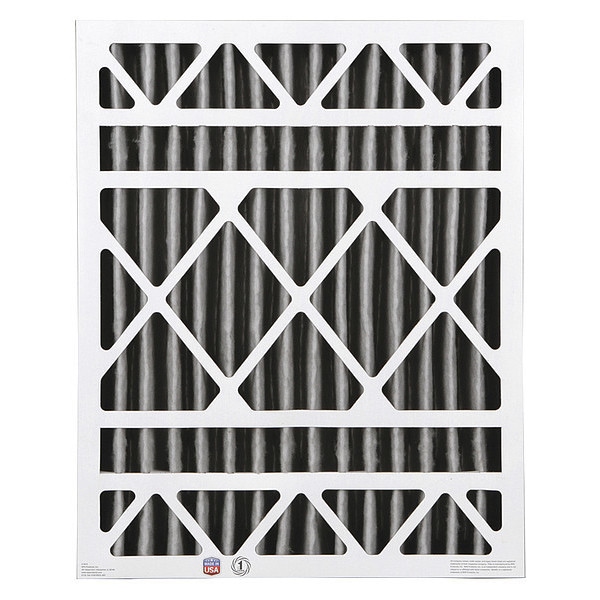

20 in x 25 in x 4 in Synthetic Furnace Air Cleaner Filter
| Nominal Filter Size | 20x25x4 |
|---|---|
| Nominal Height | 20 in |
| Nominal Width | 25 in |
| Nominal Depth | 4 in |
| For Use With | Lennox Modles HCC20-28 |
| Item | Furnace Air Cleaner Filter |
| Frame Included | Yes |
| Standards | ASHRAE 52.2 |
| Media Material | Synthetic |
| Removes Particles Down To | 0.3 to 1.0 microns |
| Initial Resistance @ 300 fpm | 0.17 in wc |
| Media Area | 24.3 sq ft |
| Performance Rating | MERV 13 |
| Final Recommended Resistance | 1.0 in in wc |
| Gasket Location | None |
| Filters Out | Dust, Bacteria, Smoke |
| Media Color | Gray |
| Air Flow @ 300 fpm | 1,024 cfm |
| OEM Replacement For (Filters) | Lennox HCF20-10, Lennox HCF20-16, Lennox HCXF20-10 |
| Pleats per Linear Foot | 12 |
| Actual Filter Size | 19-3/4 in x 24-5/8 in x 4-1/4 in |
| Actual Width | 24-5/8 in |
| Gasket Material | None |
| Filter Frame Color | White |
| Frame or Header Material | Beverage Board |
| Max. Temp. | 140 Degrees F |
| Actual Depth | 4-1/4 in |
| Air Filter Item | Furnace Air Cleaner Filter |
| Common Applications | Furnace Air Cleaner |
| Air Filter Capacity | High Capacity |
| Fits OEM Housing | Lennox HCC20-28 |
| Filter Efficiency - Air Filters | 75 % |
| Style - Air Filters | Panel |
| For Use With (Systems) | Lennox HCC20-28 |
| Actual Height | 19-3/4 in |
| Max. Velocity | 400 fpm |
| Filter Efficiency | 75% |
| Filter Type | Pleated |
| Filters Down To | 0.3 micron |
| Includes Frame | Yes |
| Compatible Manufacturer Model Number | HCC20-28 |
| Filter Layer Type | Carbon, Electrostatic |
| Frame Material | Cardboard |
| Number of Filters | 2 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 2 |
