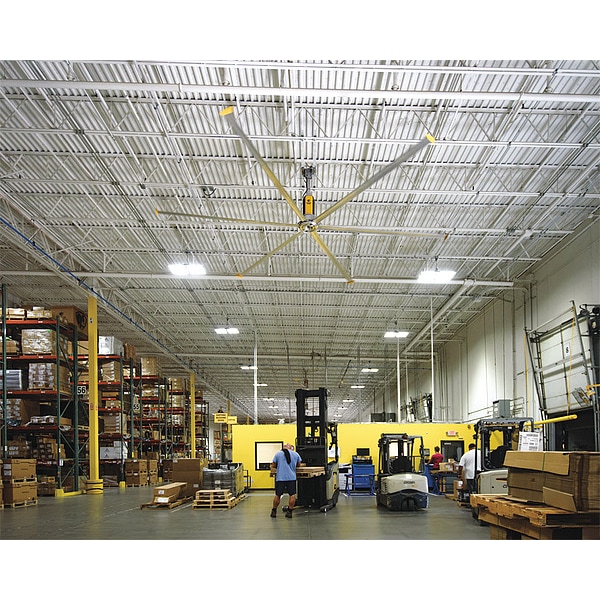

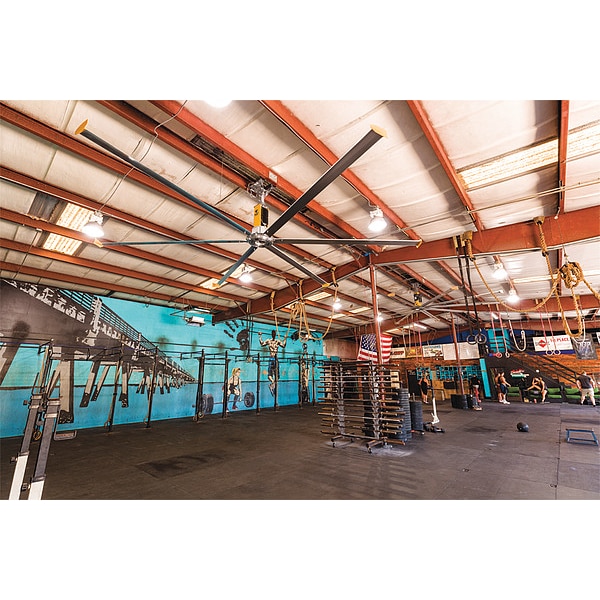

Industrial HVLS Fan, 16 ft Blade Dia, 6 Blades, Variable Speeds, 380 to 480V AC, Powder Coated
| Number of Blades | 6 |
|---|---|
| Blade Diameter | 16 ft |
| Number of Speeds | Variable |
| Voltage | 380 to 480V AC |
| Includes | Airfoils, Controller, Drop Tube, Fan Motor Assembly, Mount, Safety Cable |
| Reversible | Yes |
| Phase | 3 |
| Housing Finish | Powder Coated |
| Blade Material | Aluminum |
| Air Flow | 139,635 cfm |
| Amps | 3.39 |
| Item | Industrial HVLS Fan |
| Fan Blade Color | Silver |
| Hz | 50/60 Hz |
| Max. Mounting Height | 29 ft |
| RPM | 108 RPM |
| Down Rod Outside Dia. | 36 in |
| Standards | CSA Standard 22.2 No. 113, UL Standard 507 |
| Fan Watts | 1,469 W |
| Area Covered (Cooling) - Fans | 15,000 sq ft |
| Speed Controllable - Fans | Yes |
| Mount Type | Bracket |
| Max. Ambient Temp. | 131 deg F |
| Thermal Protection | Auto |
| Blade Finish | Anodized Aluminum |
| Area Covered (Destratification) - Fans | 15,000 sq ft |
| Motor Insulation | Class F |
| Fan Mounting Location | Joists, I Beam, Spanning Trusses |
| Environmental Applications | Industrial |
| Bearing Type | Permanently Lubricated, Double Sealed, SKF ball bearing |
| Motor Enclosure | Brushless Direct Drive |
| Sound Level | 35 dBA |
| Motor Design | Brushless Direct Drive |
| Light Kit | No Light |
| Motor HP | 1.5 |
| Min. Mounting Height | 21 ft |
| Fan Housing Color | Yellow |
| Series | Powerfoil D |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
