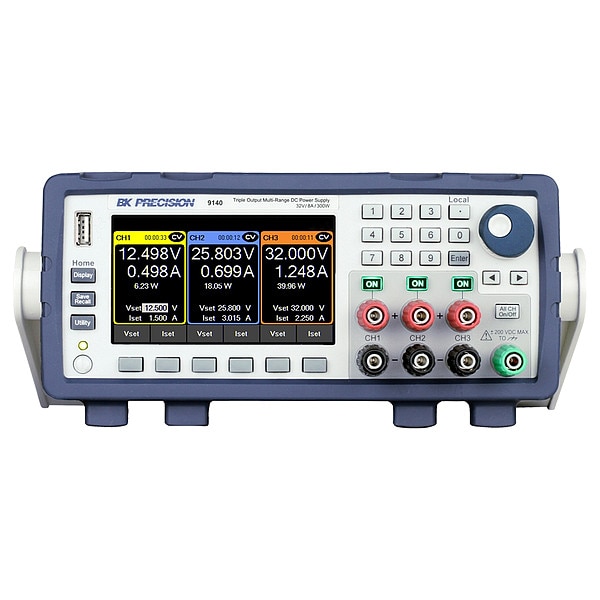

DC Power Supply, 100 to 240V AC, 96V DC, 300W, 8A
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100 to 240V AC |
| Output Voltage | 96V DC |
| Power Rating | 300 W |
| Output Amps | 8 A |
| Height | 3-1/2 in |
| Width | 8.4 in |
| Depth | 13 in |
| Hz | 47 to 63 Hz |
| Line Regulation | Less Than or Equal To 0.01% + 3 mV; Less Than or Equal To 0.1% + 3 mA |
| Calibration Certificate | Yes |
| Display | LCD |
| Manufacturers Warranty Length | 3 yr |
| Standards | cTUVus |
| Load Regulation | Less Than or Equal To 0.01% + 3 mV; Less Than or Equal To 0.1% + 3 mA |
| Current Output 1 - Minimum | 0 A |
| Current Output 3 - Maximum | 8 A |
| Current Output 1 - Maximum | 8 A |
| Line Regulation Voltage | 0.01% + 3mv |
| Line Regulation Current | 0.1% + 3 mA |
| Current Output 2 - Maximum | 8 A |
| Current Output 2 - Minimum | 0 A |
| Load Regulation Current | 0.1% + 3 mA |
| Voltage Output 1 - Minimum | 0 V DC |
| Ripple Voltage Regulation | Less Than or Equal To 5 mV |
| Current Output 3 - Minimum | 0 A |
| Load Regulation Voltage | 0.01% + 3 mV |
| Interface | Ethernet, USB |
| Package Quantity | 1 |
