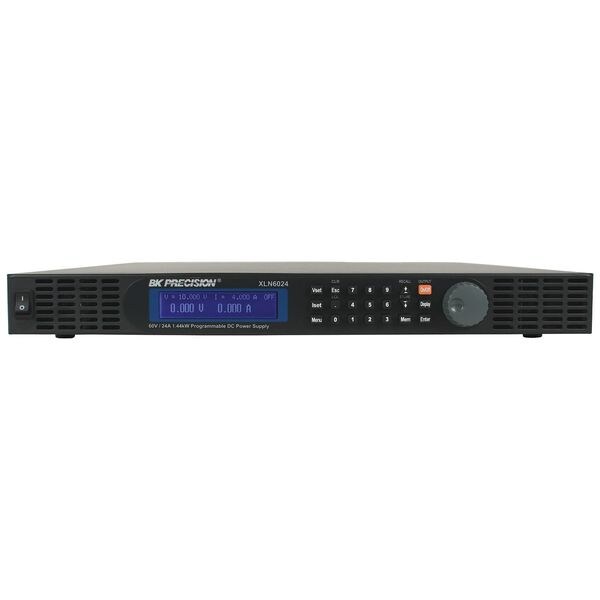

DC Power Supply, 100/240V AC, 60V DC, 1440W, 24A
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 60V DC |
| Power Rating | 1,440 W |
| Output Amps | 24 A |
| Style | Programmable |
| Height | 1.72 in |
| Width | 16-1/2 in |
| Depth | 17 in |
| Hz | 47 to 63 Hz |
| Manufacturers Warranty Length | 3 yr |
| Includes | AC Power Cord, Rackmount Kit, Terminal Blocks |
| Calibration Certificate | Yes |
| Display | VFD |
| Line Volts Regulation | Less Than or Equal To 6mV |
| Line Regulation | Less Than or Equal To 4 mA |
| Meter Type | Digital |
| Connection | RS485, USB |
| Current Limits | 0% to 100% |
| Load Regulation | Less Than or Equal To 8 mV |
| Protection | OCP, OPP and Key-Lock Function, OVP |
| Ripple Volts Regulation | Equal to 70 mVpp |
| Standards | EN 61010-1:2001, EU Low Voltage Directive 2006/95/EC |
| Load Regulation Current | 7 mA |
| Line Regulation Voltage | 6mV |
| Number of Display Digits | 4 |
| Calibration Certificate Type | NIST |
| Load Regulation Voltage | 8 mV |
| Current Output - Minimum | 0 A |
| Interface | RS-485, USB |
| Line Regulation Current | 4 mA |
| Ripple Voltage Regulation | 6 mVrms, 70 mVpp |
| Current Output - Maximum | 24 A |
| Package Quantity | 1 |
