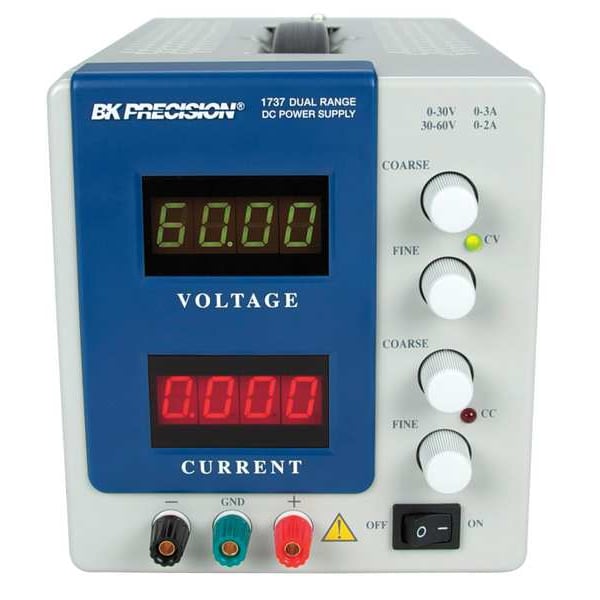

Dual Range DC Power Supply, 120/220V AC, 30V DC; 60V DC, 120 W, 3A, 2A
| Item |
Dual Range DC Power Supply |
| Input Voltage |
120/220V AC |
| Output Voltage |
30V DC; 60V DC |
| Power Rating |
120 W |
| Output Amps |
3 A, 2 A |
| Height |
6.2 in |
| Width |
5-1/2 in |
| Depth |
12-1/2 in |
| Hz |
50/60 Hz |
| Current Limits |
Constant Current Operation |
| Protection |
Overload Protection, Reverse Polarity Protection |
| Connection |
Banana Plug |
| Meter Type |
Digital |
| Includes |
AC Power Cord, RS-232 Cable, Shorting Bar |
| Line Volts Regulation |
0.01% + 3mV |
| Calibration Certificate |
No |
| Load Regulation |
0.01% + 3 mV |
| Display |
Dual LED |
| Ripple Volts Regulation |
1 mVrms |
| Manufacturers Warranty Length |
2 yr |
| Line Regulation |
0.01% + 3 mV |
| Current Output - Maximum |
3 A |
| Load Regulation Voltage |
0.01% + 3 mV |
| Line Regulation Current |
0.2% + 3 mA |
| Ripple Voltage Regulation |
1 mVrms |
| Line Regulation Voltage |
0.01% + 3mv |
| Load Regulation Current |
0.2% + 3mA |
| Interface |
RS-232 |
| Calibration Certificate Type |
Not Certified |
| Current Output - Minimum |
0 A |
| Number of Display Digits |
3 |
| Package Quantity |
1 |
