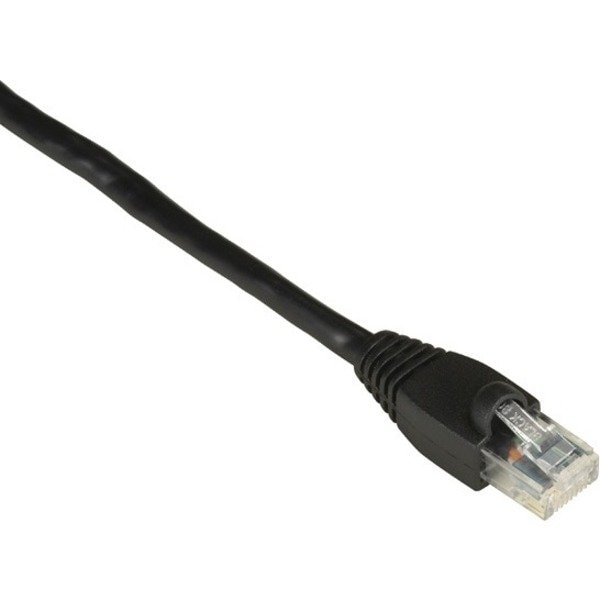

Gigatrue Cat6 Channel 550-Mhz Patch Cabl
| Item | Ethernet Patch Cable |
|---|---|
| Jacket Material | PVC |
| Standards | TIA/EIA-568-C.2 Category 6, CE, UL/cUL |
| Gauge/Conductor | 24 AWG |
| Connector End | RJ45 |
| PS-NEXT (Minimum) | 36.3 dB at 250MHz, 31.2 dB at 550MHz |
| Connector Plating Thickness | 50 microns |
| Attenuation (Maximum) | 40.5dB at 250 MHz, 62.1dB at 550MHz |
| Cable Type | Stranded |
| Frequency | Up to 550 MHz |
| Snagless Connector | Yes |
| Return Loss | 15.6dB at 250MHz, 2.60dB at 550MHz |
| NEXT (Minimum) | 38.3db at 250MHz, 33.2dB at 550MHz |
| Shielded | No |
| Impedance | 100 +/-15 ohms |
| Package Quantity | 1 |
