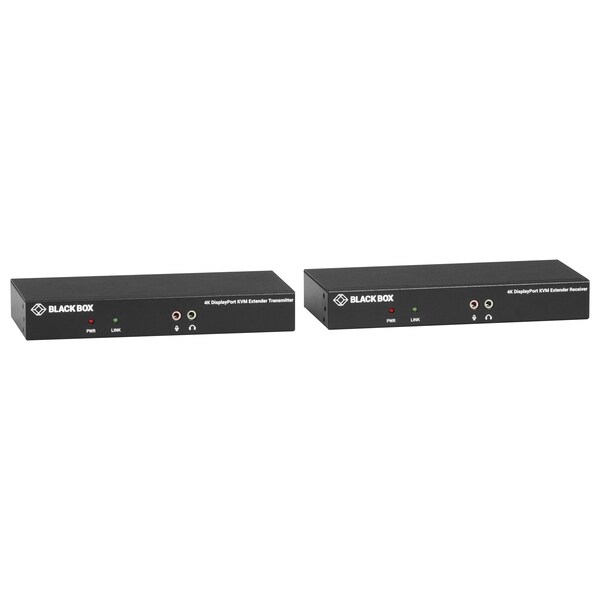

Kvx Series Displayport Fiber Kvm Extender, Sh, Tx+Rx
| Item | KVM Extender Kit |
|---|---|
| Connector Type | TRANSMITTER Host Connection: Video Input: (1) DisplayPort (Female); Serial Control Port: (1) DB9 (Female); Link Port: (1) SFP Cage; USB: (1) USB Type-B (Female); Audio: (1) Line in; (1) Line out; Local Video Output: (1) DisplayPort (Female) RECEIVER Console Connection: ; Video Output: (1) DisplayPort (Female); Serial Control Port: (1) DB9 male; Link Port: (1) SFP Cage; USB: (4) USB Type-A (Female); Audio: (1) Mic In; (1) Speaker Out |
| Housing Material | Metal |
| Height | 0.83 in, 0.83 in |
| Depth | 7.09 in, 7.09 in |
| Width | 3.27 in, 3.27 in |
| Max. Resolution | 3840x2160 @ 30Hz, 4K @ 30 Hz, 3008x1692 @ 60Hz(Mac), 2560x1600 @ 60Hz, 2560x1440 @ 60Hz, 2560x1440 @ 30Hz, 1920x1200 @ 60Hz, 1920x1080 @ 60Hz, 1680x1050 @ 60Hz, 1440x900 @ 60Hz(Mac), 1366x768 @ 60Hz, 1360x768 @ 60Hz, 1280x1024 @ 60Hz, 1280x800 @ 60Hz, 1280x768 @ 60Hz, 1152x864 @ 60Hz, 1024x768 @ 60Hz, 1024x600 @ 60Hz, 800x600 @ 60Hz |
| Mean Time Between Failures | Transmitter: 137,540 hrs; Receiver: 165,620 hrs |
| LED Indicators | Link: Green LED, Power: Red LED |
| Operating Temperature | 32 to 122°F |
| DDC Support | DDC, DDC2, DDC2B |
| Storage Temperature | -4 to 140 deg F |
| Country of Origin (subject to change) | Unknown |
| Package Quantity | 1 |
