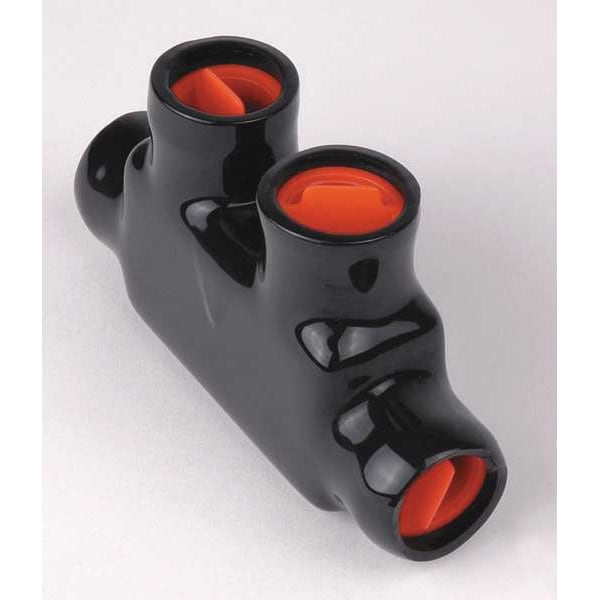

Conector multitoma aislado, 4.13 pulgadas de largo.
| Item | Insulated Multitap Connector |
|---|---|
| Connector Type | Double-Sided Entry |
| No. of Ports | 2 |
| Min. Conductor Size | 6 AWG |
| Max. Conductor Size | 250 kcmil |
| Stud Size | 5/16 in |
| Insulation Material | PVC |
| Material | Aluminum |
| Length | 4.13 in |
| Width | 1 in |
| Direct Burial Rated | No |
| Standards | CSA 6591, UL E9809 |
| Body Material | Aluminum |
| Head Style | Hex |
| Max. Voltage | 600V AC/DC |
| Screw Material | Aluminum |
| Length (Straight Wireway) | 4.13 in |
| Number of Ports | 2 |
| Hex Size | 5/16 in |
| Maximum Operating Temperature | 194 deg F |
| Overall Length | 4 in |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Overall Width | 1.06 in |
| Special Features | All Cable Entry are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies, Ultraviolet Resistant |
| Tap Shape | T |
| Compatible with Product Type | Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors |
| Color | Black |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Maximum Voltage | 600 V |
| Special Functions | PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs. |
| Voltage Rating | 600 V |
| Product Type | AMT Connector |
| Product Name | BLACKBURN MECHANICAL |
| Features | PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.; Compact design provides space efficiencies.; All cable entry are equipped with an anti-oxidation compound. |
| Package Quantity | 1 |
