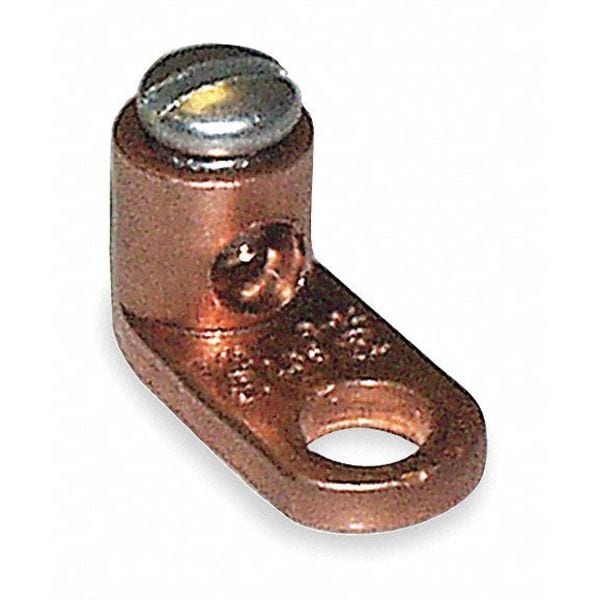

Conector mecánico, de 500 kcmil a 4/0 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Compact |
| No. of Conductors | 1 |
| Min. Conductor Size | 4/0 AWG Stranded |
| Max. Conductor Size | 500 kcmil Stranded |
| Stud Size | 9/16 in |
| Material | Bronze |
| Length | 3 in |
| Width | 1.41 in |
| No. of Holes | 1 |
| Head Style | Hex |
| Standards | UL Listed, UL486A/B |
| Screw Material | Steel |
| Body Material | Copper |
| Length (Straight Wireway) | 3 in |
| For Stud Size | 9/16 in |
| Number of Conductors | 1 |
| Overall Depth | 1-1/2 in |
| Special Features | High Strength Bronze Alloy |
| Hole Diameter | 0.56 in |
| Maximum Operating Temperature | 194 deg F |
| Connection Orientation | Compact |
| Hole Spacing | Not Applicable |
| Maximum Voltage | 1,000 V |
| Tongue Width | 1.41 in |
| Screw Finish | Zinc Plated |
| Tongue Length | 1.63 in |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Conductor Material | Copper |
| Overall Width | 1.41 in |
| Tongue Thickness | 0.28 in |
| Overall Length | 3 in |
| Wire Range | 4/0 Str.-500 kcmil |

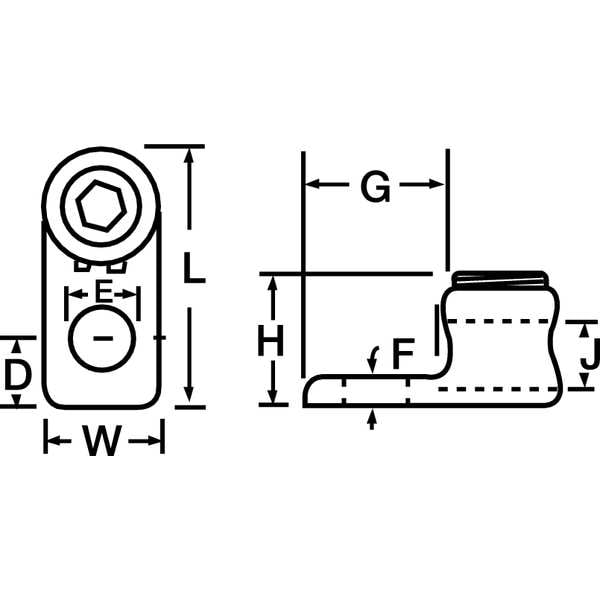

| G (inches) | 1.625 |
| Width (inches) | 11,701 |
| Length (inches) | 3 |
| D (inches) | 45,054 |
| Style | Type L - Copper Single Conductor, One-Hole Mount |
| Package Quantity | 1 |
