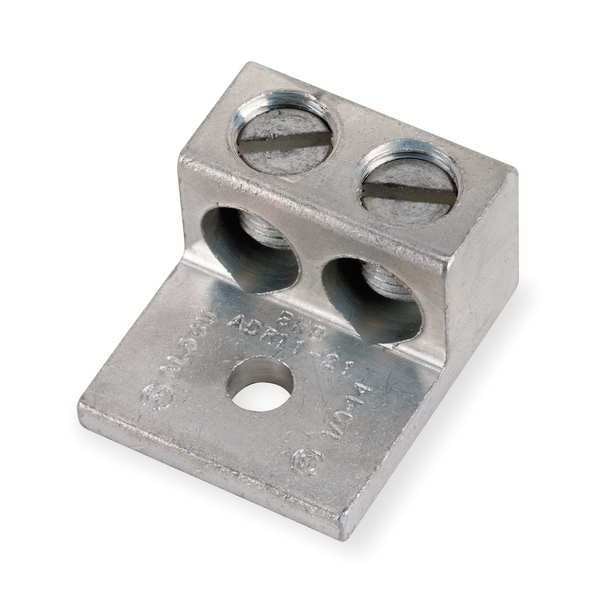

Mechanical Conn, Lug, 1/0 to 14 AWG, 2 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 2 |
| Min. Conductor Size | 14 AWG Solid |
| Max. Conductor Size | 1/0 AWG Stranded |
| Stud Size | 1/4 in |
| Material | Aluminum |
| Length | 1.47 in |
| Width | 1.22 in |
| Standards | UL Listed, UL486A/B |
| Head Style | Slotted |
| No. of Holes | 1 |
| Body Material | Aluminum |
| Length (Straight Wireway) | 1.47 in |
| Special Features | Easy Installation |
| Maximum Operating Temperature | 194 deg F |
| Hole Diameter | 1/4 in |
| Number of Conductors | 2 |
| Maximum Voltage | 1,000 V |
| Number of Terminations | 1 |
| Tongue Width | 1.22 in |
| Tongue Thickness | 0.19 in |
| For Conductor Material | Copper, Aluminum |
| Tongue Length | 0.84 in |
| For Stud Size | 1/4 in |
| Connection Orientation | Dual Rated Lug |
| Hole Spacing | 0.55 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Overall Depth | 13/16 in |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Length | 1.47 in |
| Contact Finish | Tin |
| Overall Width | 1.22 in |
| Type | Dual-Rated Mechanical Connector |
| Conductor Range (AL or CU) Maximum | 1/0 Str. |
| Plating | Tin-Plated |
| Style | ALCUL Two-Conductor, One-Hole Mount |
| Conductor Range (AL or CU) Minimum | 14 AWG |

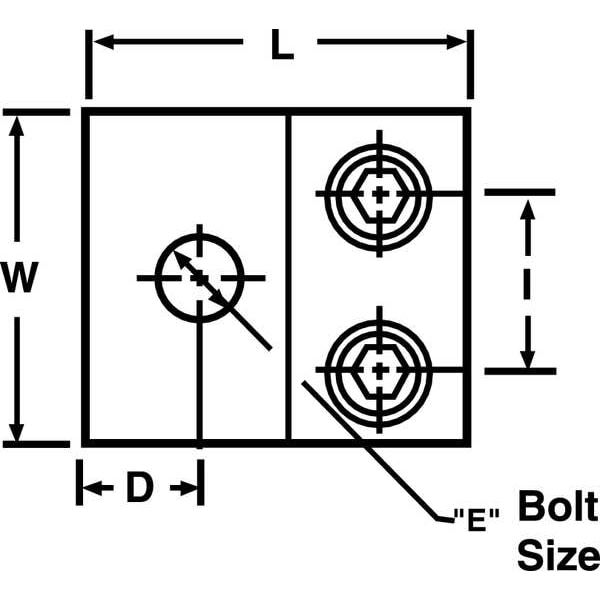

| Length (inches) | 11,703 |
| G (inches) | 0.8438 |
| D (inches) | 45,123 |
| Width (inches) | 11,695 |
| I (inches) | 0.5469 |
| Standard | UL E9809 |
| Features | Easy Installation - no special tools required. |
| Mounting Hole Spacing | 1/4 in |
| Package Quantity | 1 |
