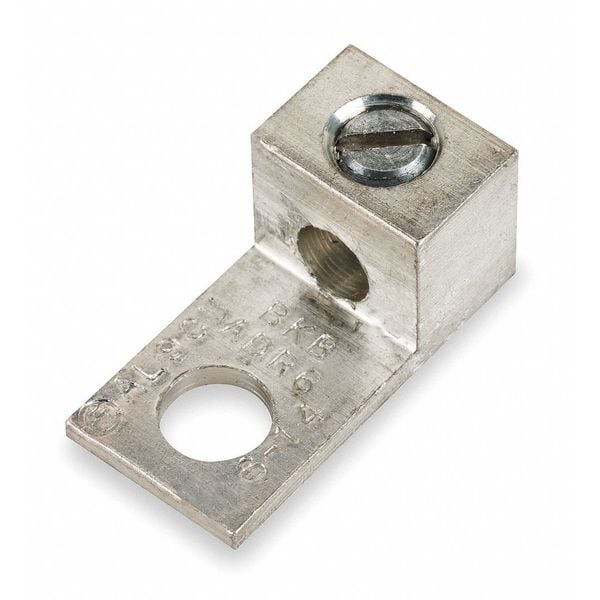

Mechanical Conn, Lug, 2/0 to 14 AWG, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Solid |
| Max. Conductor Size | 2/0 AWG Stranded |
| Stud Size | 1/4 in |
| Insulation Material | None |
| Material | Aluminum |
| Length | 1.47 in |
| Width | 0.63 in |
| Head Style | Slotted |
| Standards | UL Listed, UL486A/B |
| No. of Holes | 1 |
| Body Material | Aluminum |
| Length (Straight Wireway) | 1.47 in |
| Contact Finish | Tin |
| For Conductor Material | Copper, Aluminum |
| Overall Depth | 13/16 in |
| Number of Conductors | 1 |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Tongue Thickness | 0.19 in |
| Hole Spacing | Not Applicable |
| Tongue Width | 0.63 in |
| Overall Length | 1.47 in |
| Maximum Voltage | 1,000 V |
| Hole Diameter | 1/4 in |
| For Stud Size | 1/4 in |
| Connection Orientation | Dual Rated Lug |
| Overall Width | 0.63 in |
| Tongue Length | 0.84 in |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Special Features | Easy Installation |
| Product Type | Connector |
| Spacing | 1/4 in |
| Product Name | BLACKBURN MECHANICAL |
| Surface Finishing | Tin Plated |
| Special Functions | Easy Installation - no special tools required. |
| Standard | UL E9809 |
| Mounting Hole Spacing | 1/4 in |
| Package Quantity | 1 |
