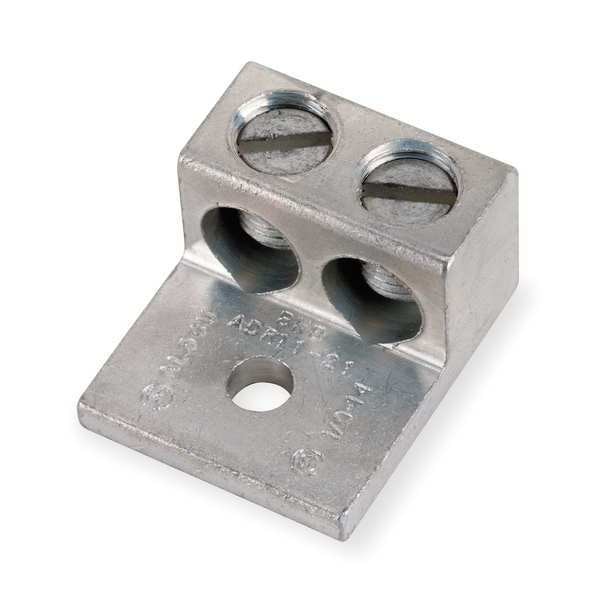

Mechanical Conn, Lug, 250 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 2 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Stud Size | 3/8 in |
| Material | Aluminum |
| Length | 2.56 in |
| Width | 1.64 in |
| Standards | UL Listed, UL486A/B |
| Head Style | Socket |
| No. of Holes | 1 |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2.56 in |
| Tongue Length | 1.56 in |
| Connection Orientation | Dual Rated Lug |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Conductor Material | Copper, Aluminum |
| Maximum Voltage | 1,000 V |
| Overall Length | 2.56 in |
| Hole Spacing | 0.81 in |
| For Stud Size | 3/8 in |
| Overall Width | 1.64 in |
| Maximum Operating Temperature | 194 deg F |
| Number of Conductors | 2 |
| Hole Diameter | 0.38 in |
| Overall Depth | 1-3/16 in |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Contact Finish | Tin |
| Tongue Width | 1.64 in |
| Tongue Thickness | 1/4 in |
| Special Features | Easy Installation |
| Number of Terminations | 1 |
| Type | Dual-Rated Mechanical Connector |
| Conductor Range (AL or CU) Maximum | 250 kcmil |

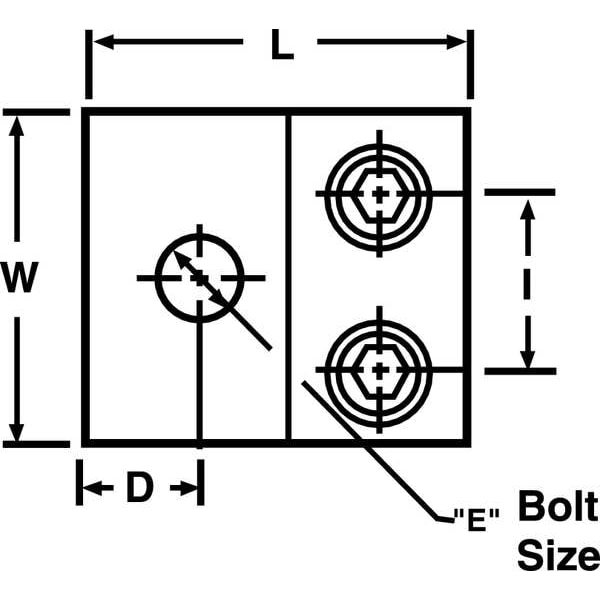

| D (inches) | 45,115 |
| Plating | Tin-Plated |
| G (inches) | 1.5625 |
| Width (inches) | 1.6406 |
| Length (inches) | 42,409 |
| I (inches) | 0.8125 |
| Conductor Range (AL or CU) Minimum | 6 Str. |
| Style | ALCUL Two-Conductor, One-Hole Mount |
| Mounting Hole Spacing | 3/8 in |
| Features | Easy Installation - no special tools required. |
| Standard | UL E9809 |
| Package Quantity | 1 |
