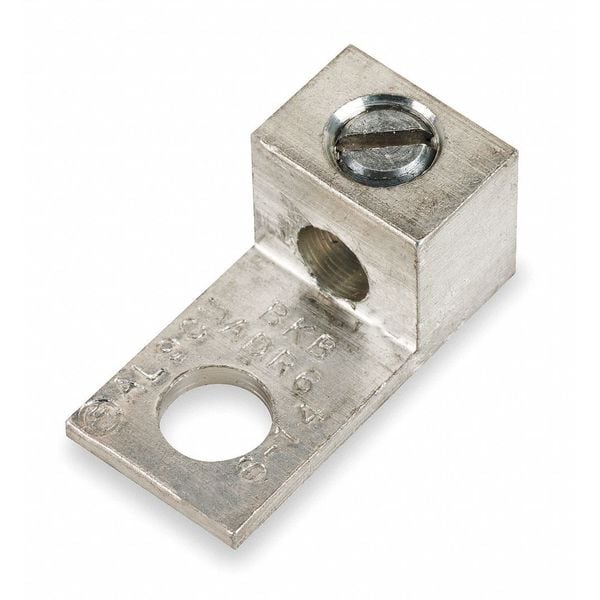

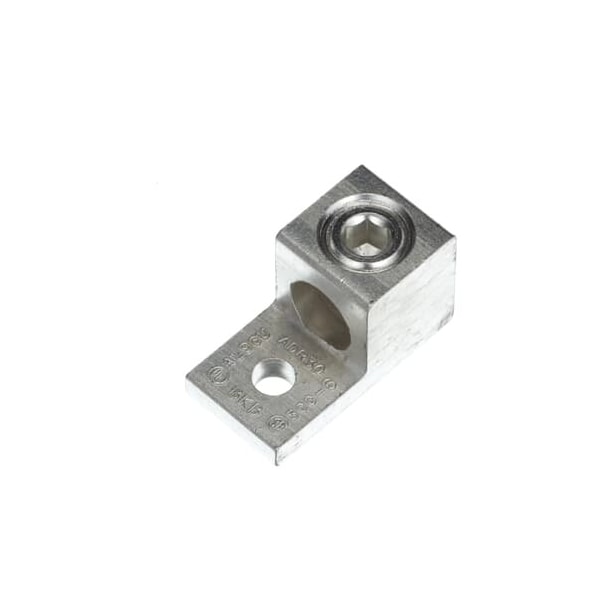

Conexión mecánica, de ojal, de 300 kcmil a 6 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 300 kcmil Stranded |
| Stud Size | 5/16 in |
| Insulation Material | None |
| Material | Aluminum |

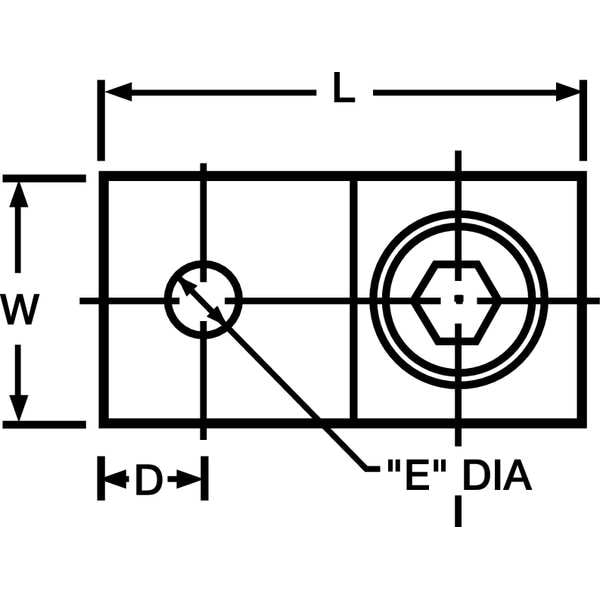

| Length | 2 in |
| Width | 1 in |
| No. of Holes | 1 |
| Standards | UL Listed, UL486A/B |
| Head Style | Socket |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2 in |
| Special Features | Easy Installation |

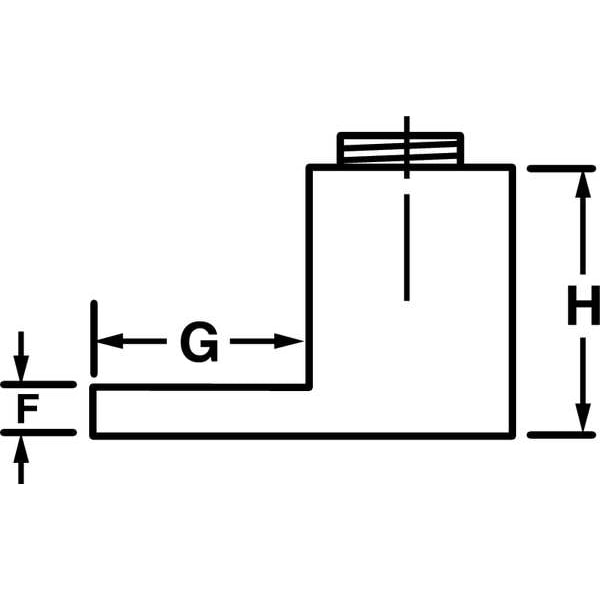

| Tongue Length | 1 in |
| Contact Finish | Tin |
| Overall Width | 1 in |
| Tongue Thickness | 1/4 in |
| Overall Depth | 1-1/8 in |
| For Stranded Copper Wire Size - Maximum | 300 kcmil |
| Overall Length | 2 in |
| Hole Diameter | 0.31 in |
| For Conductor Material | Copper, Aluminum |
| Tongue Width | 1 in |
| Hole Spacing | Not Applicable |
| Maximum Voltage | 1,000 V |
| Number of Conductors | 1 |
| Connection Orientation | Dual Rated Lug |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Maximum Operating Temperature | 194 deg F |
| For Stud Size | 5/16 in |
| Number of Terminations | 1 |
| Product Type | Connector |
| Surface Finishing | Tin-Plated |
| Product Name | BLACKBURN MECHANICAL |
| Special Functions | Easy Installation - no special tools required. |
| Standard | UL E9809 |
| Package Quantity | 1 |
