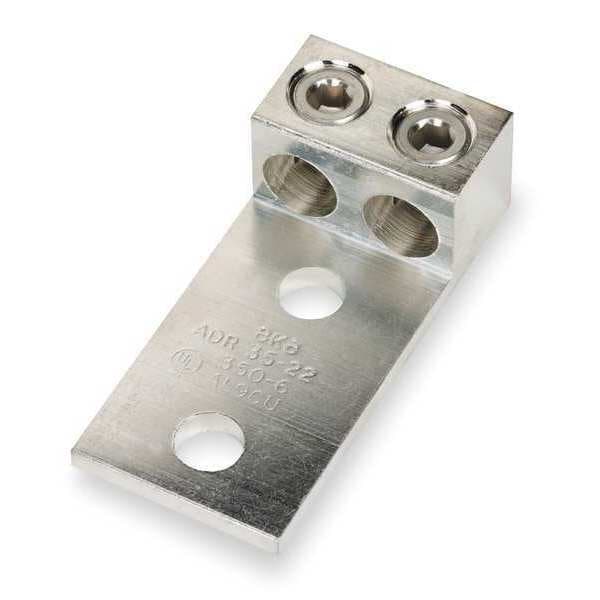

Conector mecánico, Brida, 350 kcmil a 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 2 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 350 kcmil Stranded |
| Stud Size | 1/2 in |
| Material | Aluminum |
| Length | 4-1/4 in |
| Width | 2.3 in |
| Head Style | Hex |
| No. of Holes | 2 |
| Standards | UL Listed, UL486A/B |
| Body Material | Aluminum |
| Length (Straight Wireway) | 4-1/4 in |
| Connection Orientation | Dual Rated Lug |
| Number of Conductors | 2 |
| Tongue Thickness | 0.31 in |
| Number of Terminations | 1 |
| Overall Width | 2.3 in |
| Maximum Voltage | 1,000 V |
| Overall Length | 4-1/4 in |
| Tongue Length | 3 in |
| Hole Diameter | 1/2 in |
| Contact Finish | Tin |
| For Conductor Material | Copper, Aluminum |
| Hole Spacing | 1.22 in |
| Tongue Width | 2.3 in |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Easy Installation |
| For Stud Size | 1/2 in |
| Overall Depth | 1-3/8 in |
| Type | Dual-Rated Mechanical Connector |

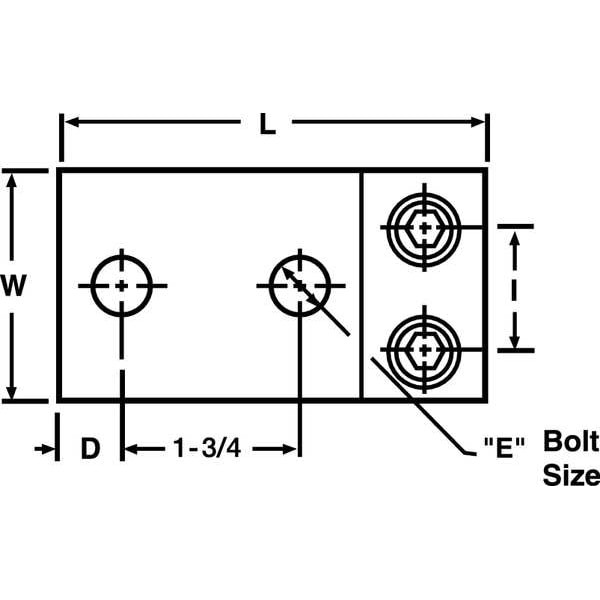

| I (inches) | 1.2188 |
| Width (inches) | 23,426 |
| Conductor Range (AL or CU) Maximum | 350 kcmil |
| Plating | Tin-Plated |
| G (inches) | 3 |
| D (inches) | 45,054 |
| Length (inches) | 38,078 |
| Style | ALCUL Two-Conductor, Two-Hole Mount |
| Conductor Range (AL or CU) Minimum | 6 Str. |
| Standard | UL E9809 |
| Features | Easy Installation - no special tools required. |
| Mounting Hole Spacing | 1/2 in |
| Number of mounting holes | 2 |
| Package Quantity | 1 |
