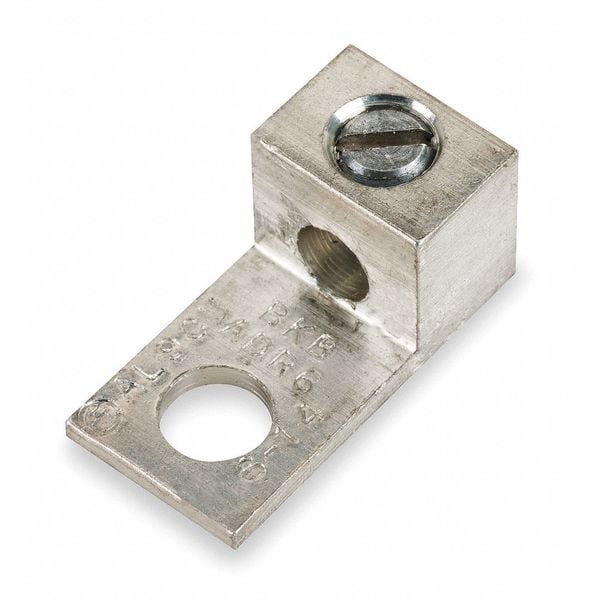

Mechanical Conn, Lug, 6 to 14 AWG, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Dual Rated Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Solid |
| Max. Conductor Size | 6 AWG Stranded |
| Stud Size | 1/4 in |
| Material | Aluminum |
| Length | 1.05 in |
| Width | 1/2 in |
| No. of Holes | 1 |
| Head Style | Slotted |
| Standards | UL Listed, UL486A/B |
| Body Material | Aluminum |
| Length (Straight Wireway) | 1.05 in |
| Hole Diameter | 1/4 in |
| Tongue Length | 0.67 in |
| For Stud Size | 1/4 in |
| For Conductor Material | Copper, Aluminum |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Special Features | Easy Installation |
| Overall Depth | 1/2 in |
| Number of Terminations | 1 |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Width | 1/2 in |
| Contact Finish | Tin |
| Maximum Voltage | 1,000 V |
| Tongue Thickness | 0.08 in |
| Maximum Operating Temperature | 194 deg F |
| Overall Length | 1.05 in |
| Connection Orientation | Dual Rated Lug |
| Number of Conductors | 1 |
| Hole Spacing | Not Applicable |
| Tongue Width | 1/2 in |
| Type | Dual-Rated Mechanical Connector |
| Conductor Range (Main/Primary) | 14 to 6 |
| Number Of Mounting Holes | 1 |
| Outer Dimensions (inches) | 14.7 x 6.6 x 4.6 |
| Standard | UL E9809 |
| Finish | Tin Plated |
| Inner Dimensions (inches) | 4.3 x 2.9 x 3.1 |
| Features | Easy Installation - no special tools required. |
| Insulation | None |
| Package Quantity | 1 |
