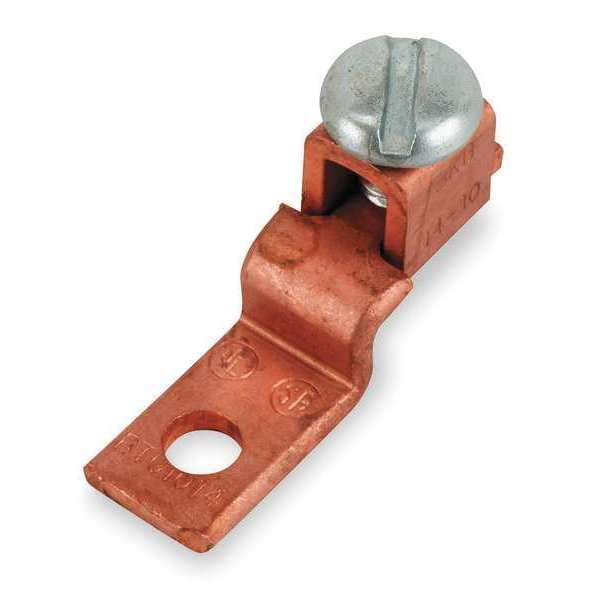

Conector mecánico, lengüeta desplazada, calibre de cable de 6 a 14 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Offset Tang |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Solid |
| Max. Conductor Size | 6 AWG Stranded |
| Stud Size | 13/64 in |
| Material | Electrolytic Copper |
| Length | 1.09 in |
| Width | 0.38 in |
| Head Style | Slotted |
| No. of Holes | 1 |
| Screw Material | Steel |
| Standards | UL Listed, UL486A/B |
| Body Material | Copper |
| Length (Straight Wireway) | 1.09 in |
| Hole Spacing | Not Applicable |
| Connection Orientation | Offset Tang |
| Special Features | Notched V-Bottom Collar, Uniquely Designed Pressure Bar |
| Number of Terminations | 1 |
| Maximum Operating Temperature | 194 deg F |
| Overall Width | 0.38 in |
| Tongue Length | 0.53 in |
| Hole Diameter | 0.2 in |
| Maximum Voltage | 1,000 V |
| Tongue Thickness | 0.08 in |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Number of Conductors | 1 |
| Tongue Width | 0.38 in |
| Overall Depth | 11/16 in |
| For Stud Size | 13/64 in |
| Tongue Offset Height | 0.28 in |
| Screw Finish | Zinc Plated |
| Overall Length | 1.09 in |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Product Type | Connector |
| Product Name | ELEC CONNECTOR <1000V |
| Special Functions | Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal. |
| Standard | UL E9809 |
| Features | Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal.; Made of electrolytic seamless copper. Screws are zinc-plated steel. |
| Package Quantity | 1 |
