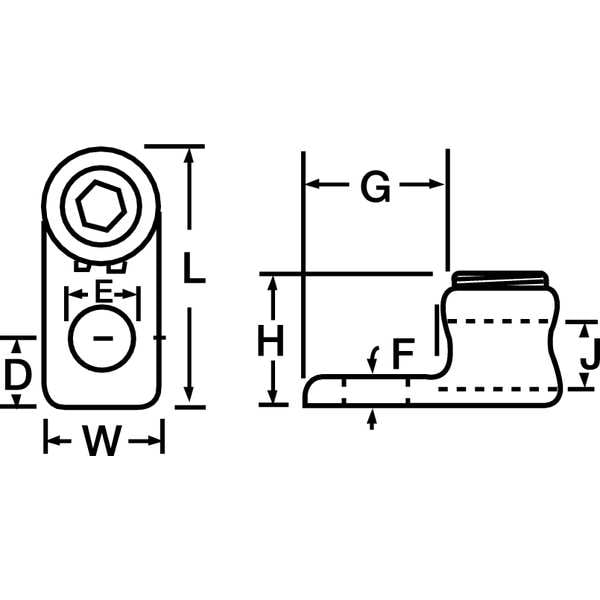

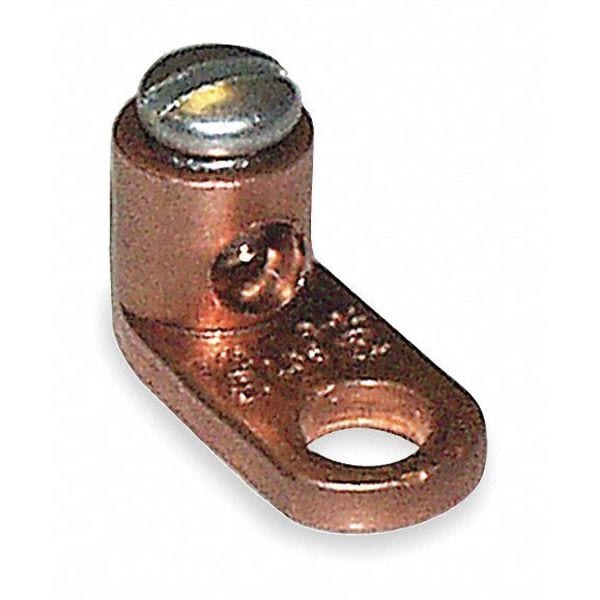

Mechanical Conn, Strght Tang, 1/0 to 8 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Straight Tang |
| No. of Conductors | 1 |
| Min. Conductor Size | 8 AWG Solid |
| Max. Conductor Size | 1/0 AWG Stranded |
| Stud Size | 21/64 in |
| Insulation Material | Non-Insulated |
| Material | Electrolytic Copper |
| Length | 1-1/2 in |
| Width | 0.73 in |
| Head Style | Socket |
| Standards | UL Listed, UL486A/B |
| Screw Material | Steel |
| No. of Holes | 1 |
| Body Material | Copper |
| Length (Straight Wireway) | 1-1/2 in |
| Overall Length | 1-1/2 in |
| Overall Depth | 3/4 in |
| Maximum Voltage | 1,000 V |
| Hole Spacing | Not Applicable |
| Connection Orientation | Straight Tang |
| Tongue Thickness | 0.09 in |
| For Stranded Copper Wire Size - Minimum | 8 AWG |
| Tongue Length | 0.78 in |
| For Conductor Material | Copper |
| Number of Terminations | 1 |
| Tongue Width | 0.73 in |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Cold Forged from Pure Electrolytic Copper With 99 Percent Conductivity |
| Screw Finish | Zinc Plated |
| Hole Diameter | 0.33 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Number of Conductors | 1 |
| For Stud Size | 21/64 in |
| Overall Width | 0.73 in |
| Special Functions | Cold forged from pure electrolytic copper with 99 percent conductivity. |
| Product Name | BLACKBURN MECHANICAL |
| Product Type | Connector |
| Cable Size | 8-1/0 AWG |
| Standard | UL E9809 |
| Package Quantity | 1 |
