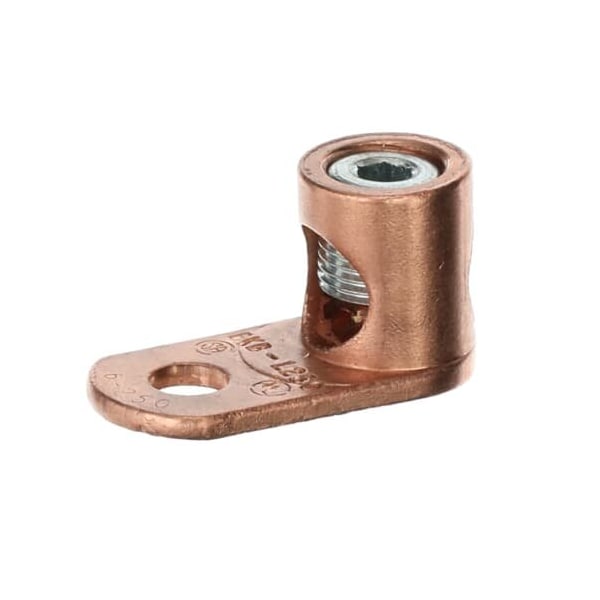

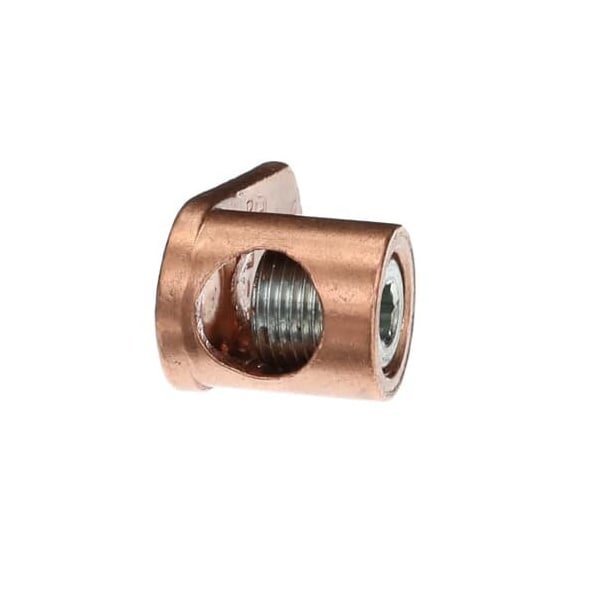

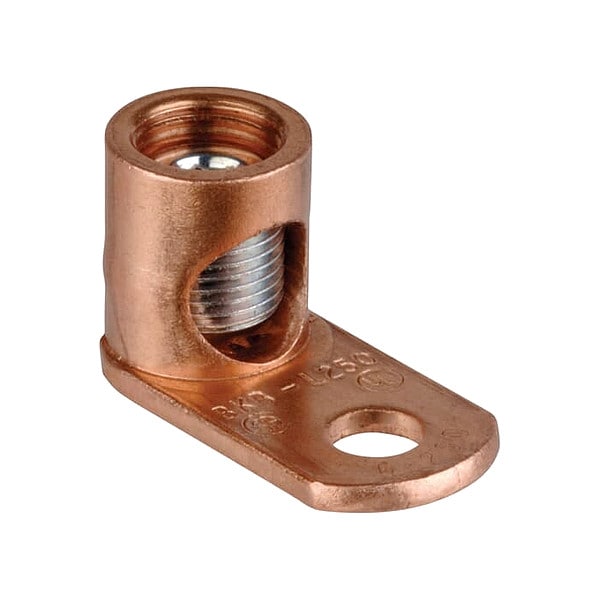

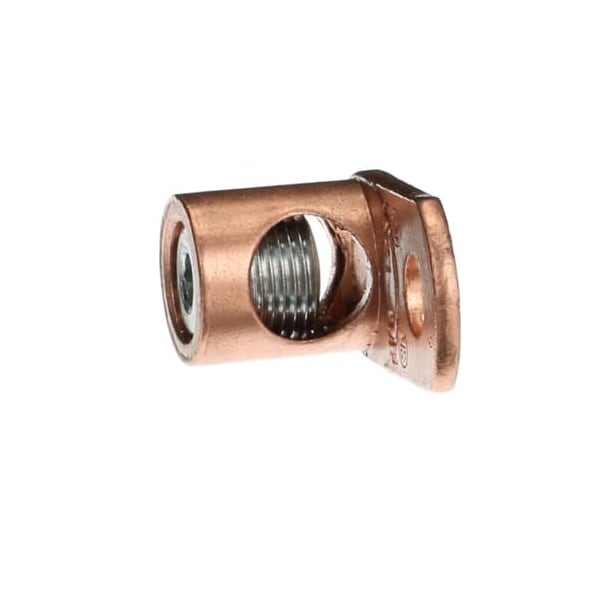

Mechanicl Conn, Cmpact, 250 kcmil to 6 AWG
| Item | Mechanical Connector |
|---|---|
| Connector Type | Compact |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 250 kcmil Stranded |
| Stud Size | 13/32 in |
| Material | Electrolytic Copper |
| Length | 1.95 in |
| Width | 0.94 in |
| Screw Material | Steel |
| No. of Holes | 1 |
| Standards | UL Listed, UL486A/B |
| Head Style | Hex |
| Body Material | Copper |
| Length (Straight Wireway) | 1.95 in |
| For Conductor Material | Copper |
| Tongue Thickness | 0.13 in |
| Tongue Length | 1.09 in |
| Number of Conductors | 1 |
| Special Features | Cold Forged from Pure Electrolytic Copper With 99 Percent Conductivity |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Overall Depth | 1-1/16 in |
| For Stud Size | 13/32 in |
| Hole Diameter | 0.41 in |
| Maximum Voltage | 1,000 V |
| Tongue Width | 0.94 in |
| Connection Orientation | Compact |
| Overall Length | 1.95 in |
| Screw Finish | Zinc Plated |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Overall Width | 0.94 in |
| Maximum Operating Temperature | 194 deg F |
| Hole Spacing | Not Applicable |
| Number of Terminations | 1 |
| Special Functions | Cold forged from pure electrolytic copper with 99 percent conductivity. |
| Product Type | Connector |
| Product Name | ELECTRICAL TERMINAL |
| Standard | UL E9809 |
| Package Quantity | 1 |
