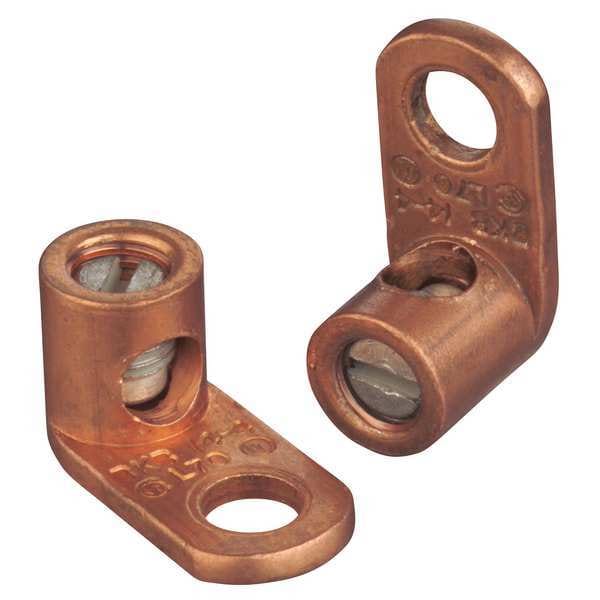

Mechanicl Conn, Cmpact, 4 to 14 AWG, 1 Cond
| Item | Mechanical Connector |
|---|---|
| Connector Type | Compact |
| No. of Conductors | 1 |
| Min. Conductor Size | 14 AWG Solid |
| Max. Conductor Size | 4 AWG Stranded |
| Stud Size | 9/32 in |
| Material | Electrolytic Copper |
| Length | 1.13 in |
| Width | 0.53 in |
| Head Style | Slotted |
| No. of Holes | 1 |
| Screw Material | Steel |
| Standards | UL Listed, UL486A/B |
| Body Material | Copper |
| Length (Straight Wireway) | 1.13 in |
| Tongue Width | 0.53 in |
| Screw Finish | Zinc Plated |
| For Stud Size | 9/32 in |
| Overall Width | 0.53 in |
| Overall Depth | 9/16 in |
| For Conductor Material | Copper |
| Connection Orientation | Compact |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Number of Terminations | 1 |
| Tongue Length | 0.66 in |
| Number of Conductors | 1 |
| Hole Diameter | 0.28 in |
| Maximum Voltage | 1,000 V |
| Overall Length | 1.13 in |
| Hole Spacing | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Special Features | Cold Forged from Pure Electrolytic Copper With 99 Percent Conductivity |
| Tongue Thickness | 0.09 in |
| Type | Copper Connectors |
| Standard | UL E9809 |
| Insulation | None |
| Features | Cold forged from pure electrolytic copper with 99 percent conductivity. |
| Package Quantity | 1 |
