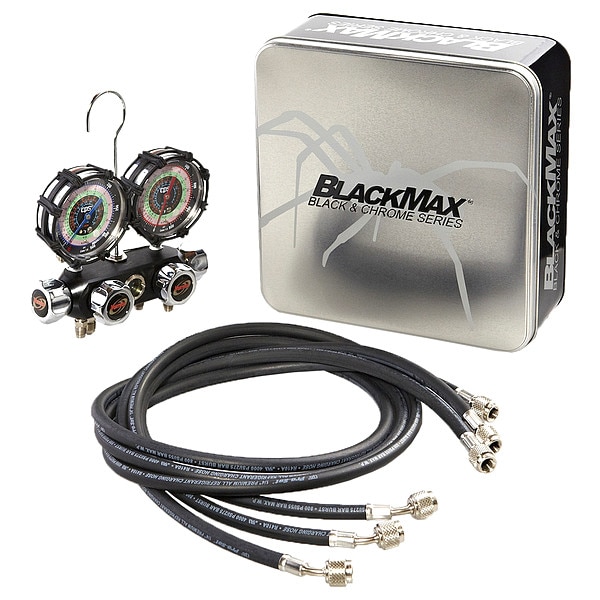

Manifold Gauge Set, 5 ft L, 3 1/8 in Gauge
| Item | Manifold Gauge Set |
|---|---|
| Number of Valves | 4 |
| Refrigerant Compatibility | R-134A, R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Hose Color | Black |
| Material | Anodized Aluminum (Body), Silicon (Dampening Cup) |
| Features | Essential Tools for Install/Service of Ductless Mini-Split A/C Units with 5/16 in (1/2"-20 UNF) Fittings |
| Body Material | Aluminum |
| Gauge Accuracy | 1.00 |
| Includes | Carrying Case |
| Hose Length | 5 ft |
| Includes Sightglass | Sightglass Included |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Manifold Port Connection Thread Direction | Right-Hand |
| Display Illumination | Non-Illuminated |
| A2L Compatibility | Not A2L Compatible |
| Response Time | Instantaneous |
| Hose Connection Thread Direction | Right-Hand |
| Temperature Units Measured | Degrees F |
| Gauge Type | High Side, Low Side |
| High Side Display Pressure - Maximum | 800 psi |
| High Side Display Pressure - Minimum | 0 psi |
| For Refrigerant Type | R-134A, R-22, R-404A, R-410A |
| Product Type | Manifold Gauge Set |
| Gauge Diameter | 3-1/8 in |
| Accuracy | +/- 1% |
| Manifold Port Connection Gender | Male |
| Manifold Port Connection Size | 1/4 in |
| Low Side Display Pressure - Maximum | 500 psi |
| Temperature Resolution | 1 deg F |
| Vacuum Port Connection Gender | Female |
| Includes Vacuum Port | Vacuum Port Included |
| Includes Gauge Boots | Boots Included |
| Vacuum Port Connection Type | SAE |
| Display Type | Analog |
| Calibration Certificate Type | Not Certified |
| Pressure Units Measured | psi |
| Vacuum Port Connection Size | 3/8 in |
| Hose Connection Type | SAE |
| Series | BlackMax |
| Low Side Display Pressure - Minimum | 30 inHg |
| Pressure Resolution | 0.1 psi |
| Manifold Port Connection Type | SAE |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
