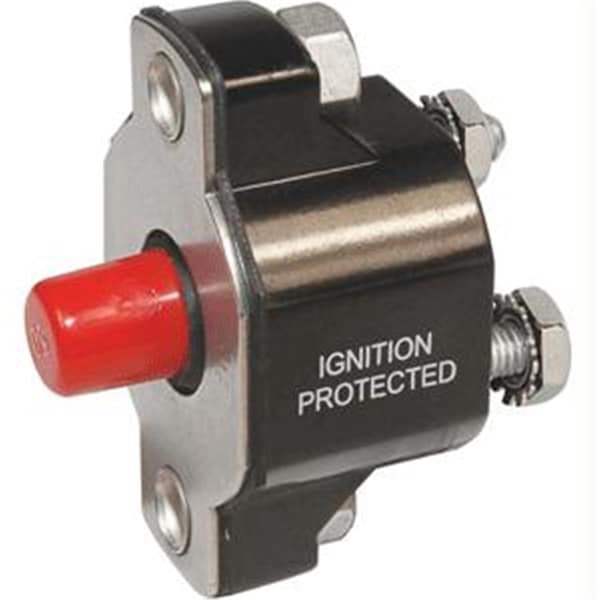

Blue Sea 2143 Reinicio del botón de empuje de deber mediano - Solo - 60 A - 2143
| Mounting Screw Thread | #8-32 |
|---|---|
| Terminal Stud Torque | 3.39 Nm |
| Meets | SAE J1428, SAE J553, UL 1077, UL 1500 |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Interrupt Capacity | 3000A at 120V AC, 5000A at 32V DC |
| Terminal Stud | #10-32 Stainless Steel |
| Minimum Operating Temperature | -54 deg C |
| Maximum Voltage | 32V DC, 120V AC |
| Maximum Operating Temperature | 74 deg C |
| Amperage | 60 A |
| Package Quantity | 1 |
