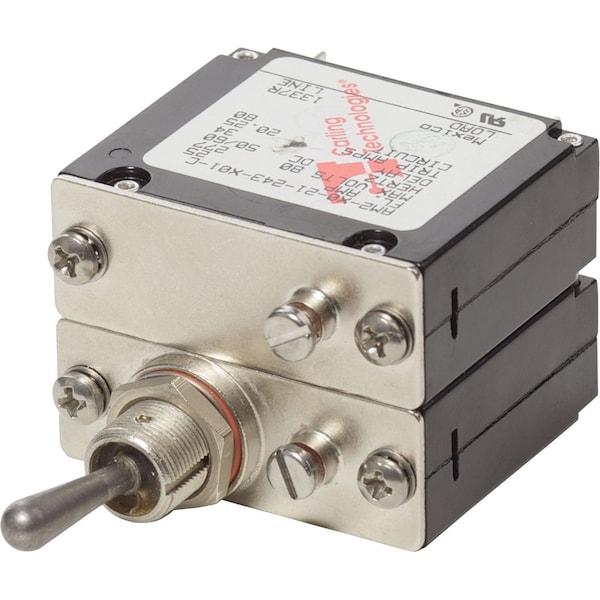

Blue Sea 7314 COTS Military Grade A-Series 25 Amp
| Circuit Breaker Type | Magnetic Hydraulic, Trip free |
|---|---|
| Mounting Screw Torque | 0.79 Nm |
| Switching Cycles | 6000 Electrical, 4000 Mechanical |
| Minimum Operating Temperature | -40 deg C |
| Interrupt Capacity | 1500A AC, 7500A DC |
| Screw Terminal Torque | 1.58 N-m |
| Mounting Boss | 1/2-32 Hex Nut SS |
| Maximum Voltage | 277V AC, 65V DC |
| Mounting Nut Torque | 3.39 Nm |
| Amperage | 25 A |
| Mounting Screw | #6-32 SS |
| Actuator Style | Metal Toggle |
| Poles | 2 |
| Terminal Screws | #10-32 SS |
| Maximum Operating Temperature | 85 deg C |
| Meets | CSA certified, UL 1077 |
| Package Quantity | 1 |
